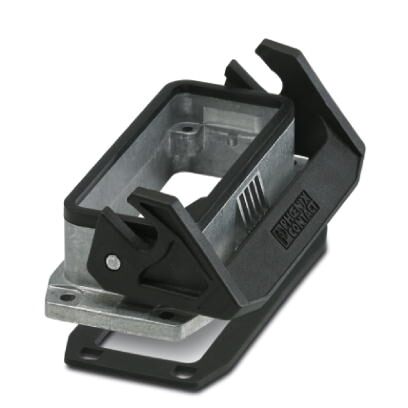

Phoenix Contact 1411324 Panel Mounting Base Housing
The Phoenix Contact HC-STA-B16-BWS-ELC-AL is a robust panel mounting base designed for demanding industrial environments. Constructed from die-cast aluminum and featuring a salt water resistant coating, this housing provides excellent protection against environmental factors. Its IP66/IP67 rating ensures reliable performance in harsh conditions. The base is compatible with a range of contact inserts (HC-B16, BB32, D40, DD72, HS6, M, K), making it suitable for diverse applications. The single locking latch design provides secure and convenient access, while the flat gasket ensures a tight seal. This housing is ideal for applications requiring reliable connectivity and protection in industrial automation, power distribution, and control systems.
Phoenix Contact 1411324 Panel Mounting Base Housing Specifications:
- Packing unit: 1 pc
- GTIN: 4046356927253
- Weight per Piece: 120.000 g
- Custom tariff number: 85389099
- Country of origin: China
- Height: 30.5 mm
- Width: 53 mm
- Length: 114 mm
- Assembly cutout length: 86 mm
- Assembly cutout width: 35 mm
- Degree of protection (IP): IP66
- Degree of protection (NEMA): 4 (UL 50e), 4X (UL 50e), 12 (UL 50e)
- Ambient temperature (operation): -40 °C ... 125 °C
- Note: For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K
- Size: B16
- Housing type: Panel mounting base
- Color: gray aluminum
- Locking type: with single locking latch
- Mounting screw torque: 1.5 Nm ... 2 Nm
- Screw connection: none
- Housing material: Die-cast aluminum, salt water resistant
- Housing surface material: uncoated
- Seal material: NBR, conductive
- Lock material: PA
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
- eCl@ss 5.1: 27261200
- eCl@ss 6.0: 27261200
- eCl@ss 7.0: 27440202
- eCl@ss 8.0: 27440202
- eCl@ss 9.0: 27440202
- ETIM 4.0: EC000437
- ETIM 5.0: EC000437
- ETIM 6.0: EC000437
- ETIM 7.0: EC000437
- UNSPSC 13.2: 31261501
