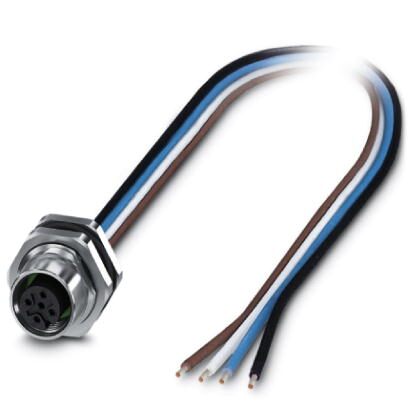

Phoenix Contact 1411586 Flush-type M12 Connector
The PHOENIX CONTACT SACC-DSI-M12FS-5P-M16XL/0,5 is a flush-type connector designed for reliable and secure data and power transmission. Its M12 A-coded design and rear mounting capability make it suitable for a wide range of industrial applications, including automation, robotics, and sensor networks. The connector's optimized housing contour and mechanical tightening limitation contribute to long-term stability, while the pre-assembled litz wires ensure immediate usability. The sealed litz wire side provides optimum leak-tightness, and the optional EMC nut allows for shield connection to the housing, enhancing transmission safety. Customer-specific assemblies and litz wire lengths are available upon request.
Phoenix Contact 1411586 Flush-type M12 Connector Specifications:
- Packing unit: 1 pc
- GTIN: 4046356936040
- Weight per Piece (excluding packing): 20.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Length of cable: 0.5 m
- Ambient temperature (operation): -25 °C ... 85 °C
- Degree of protection: IP67
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Rated surge voltage: 1.5 kV
- Number of positions: 5
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Signal type/category: Universal
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Individual wires
- Insertion/withdrawal cycles: > 100
- Torque: 0.8 Nm ... 1.3 Nm
- Mounting type: Rear mounting M16 x 1.5
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA 6.6
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: FKM
- Cable type: TPE litz wire
- Conductor cross section: 0.34 mm²
- AWG signal line: 22
- Conductor structure signal line: 7x 0.25 mm
- Core diameter including insulation: 1.2 mm ±0.07 mm
- Thickness, insulation: 0.21 mm
- Wire colors: Black, brown, blue, white, gray
- Material conductor insulation: TPE
- Conductor material: Tin-plated Cu litz wires
- Insulation resistance (cable): ≥ 20 MΩ*km
- Conductor resistance (cable): ≤ 57.6 mΩ/m
- Nominal voltage (cable): 300 V
- Test voltage (cable): 2000 V AC
- Ambient temperature (cable operation): -40 °C ... 85 °C
- Flammability rating according to UL 94: V0
- China RoHS: Environmentally Friendly Use Period = 50
