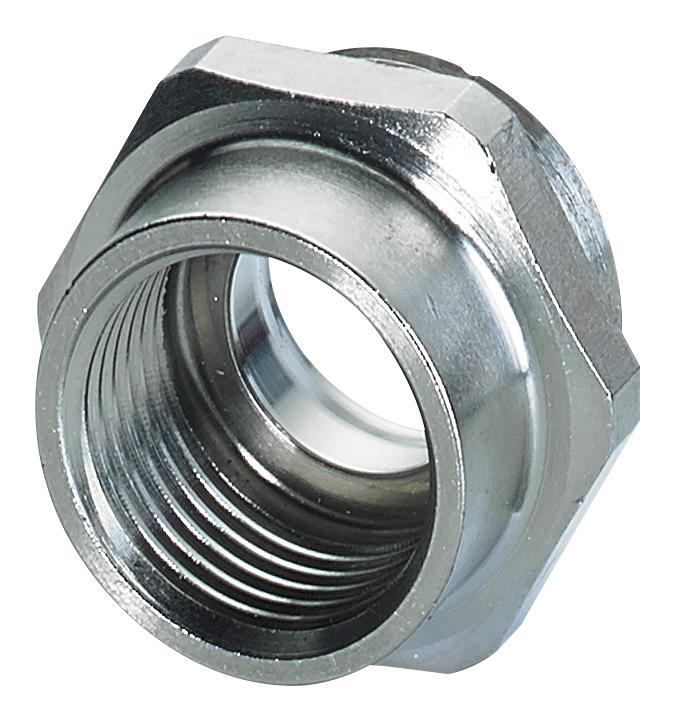

Phoenix Contact 1412079 Industrial Connector
The housing screw connection is designed for front mounting with M12 socket linking to M14 x 1 threads, featuring nickel-plated brass construction and IP67 protection. It supports over 100 insertion cycles, making it ideal for secure and durable electrical connections in industrial automation. The connector complies with IEC 61076-2-101 standards, has an ambient temperature range of -25 to 85°C during operation (or -40°C without mechanical actuation), and includes FKM sealing material for enhanced environmental resistance. Certified for safety, it ensures reliable performance in rugged conditions while facilitating easy device installation and maintenance.
Phoenix Contact 1412079 Industrial Connector Specifications:
- Material: Nickel-plated brass with FKM sealing
- Dimensions: Suitable for front mounting M14 x 1
- Protection Class: IP67 when correctly plugged and locked
- Ambient Temperature: -25°C to 85°C operational, -40°C to 85°C without mechanical actuation
- Standards: IEC 61076-2-101, EMC compliant
- Insertion/Withdrawal Cycles: > 100
- Torque: 2 Nm to 3 Nm during installation
- Environmental Compliance: China RoHS, environmentally friendly for 50 years
- Weight per Piece: Approximately 8.08 g
- Country of Origin: Germany
Buy the Phoenix Contact Series ED Connector: SACC-FP-F-M12/M14
Order the Phoenix Contact ED housing screw connector online today for reliable and secure industrial electrical connections. Designed for front mounting with M12 to M14 threading, it features nickel-plated brass construction and IP67 protection, ensuring durability in harsh environments. The connector supports over 100 insertion cycles and complies with IEC 61076-2-101 standards, making it suitable for automation systems and rugged industrial applications. Easy to install and maintain, it's the perfect choice for engineers seeking quality and longevity.
Get Phoenix Contact ED connector today—built for durability, easy installation, and secure electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact 1412079?
You can click on the BUY or RFQ button to purchase 1412079 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1412079?
You can download the 1412079 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1412079?
Phoenix Contact
