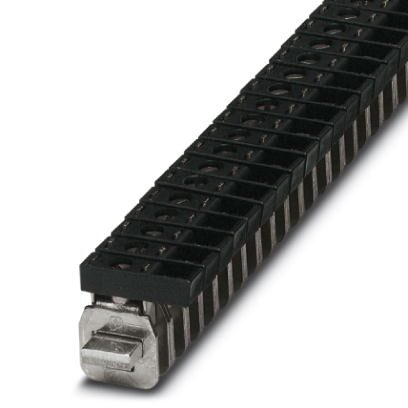

Phoenix Contact AKG4BK Connection Terminal Block
The Phoenix Contact AKG 4 BK connection terminal block is a versatile solution for secure and reliable electrical connections. Designed with a screw connection mechanism, it accommodates conductors ranging from 0.5 to 6 mm² in cross-section. The terminal block's black color and PA (Polyamide) insulating material ensure durability and insulation properties. It is commonly used in control cabinets, electrical panels, and other industrial applications where robust and dependable connections are essential. Its compact dimensions and ease of installation make it a preferred choice for various wiring and termination tasks.
Phoenix Contact AKG4BK Connection Terminal Block Specifications:
- Color: black
- Insulating material: PA
- Nominal cross section: 4 mm²
- Flammability rating according to UL 94: V2
- Nominal current IN: 41 A
- Maximum load current: 41 A (with 6 mm² conductor cross section)
- Nominal voltage UN: 300 V
- Length: 23.7 mm
- Width: 7 mm
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.5 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 20
- Conductor cross section AWG max.: 10
- Connection method: Screw connection
- Stripping length: 16 mm
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Custom tariff number: 85369010
- Country of origin: Germany
- eCl@ss 4.0: 27141131
- eCl@ss 4.1: 27141131
- eCl@ss 5.0: 27141131
- eCl@ss 5.1: 27141131
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141146
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000001
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
- UL Recognized Nominal current IN: 20 A
- UL Recognized Nominal voltage UN: 250 V
- cUL Recognized Nominal current IN: 20 A
- cUL Recognized Nominal voltage UN: 300 V
- EAC: N/A
- CSA: N/A
