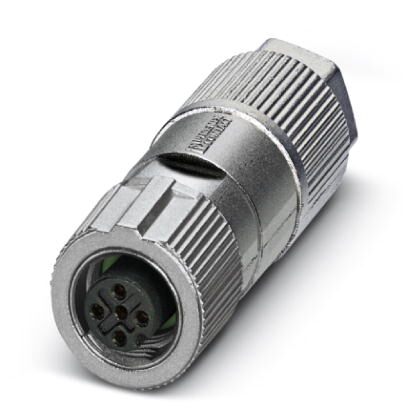

Phoenix Contact 1413992 5-Position M12 Connector
The PHOENIX CONTACT SACC-FS-5QO-0,75 SH SCO is a high-quality M12 sensor/actuator connector designed for reliable and efficient connections in industrial automation and control systems. Its universal design accommodates various applications, while the shielded construction ensures robust signal transmission even in environments with electromagnetic interference. The insulation displacement connection simplifies assembly, saving time and reducing the risk of errors. Constructed with a zinc die-cast nickel-plated housing and PA 6.6 contact carrier, this connector provides durability and resistance to harsh conditions. It is ideal for connecting sensors, actuators, and other devices in applications requiring a secure and reliable connection.
Phoenix Contact 1413992 5-Position M12 Connector Specifications:
- Packing unit: 1 pc
- GTIN: 4055626013183
- Weight per Piece (excluding packing): 40.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Wrench size, union nut: 15 mm
- Diameter housing: 19 mm
- Length: 57 mm
- External cable diameter: 5 mm ... 9.7 mm
- Stripping length of the sheath: ≥ 80 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (assembly): -5 °C ... 50 °C
- Degree of protection: IP65, IP67
- Rated current at 40°C: 4 A
- Rated voltage: 48 V AC, 60 V DC
- Number of positions: 5
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector according to IEC 61076-2-101, Shock, vibration EN 50155:2001
- Signal type/category: Universal
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Insulation displacement connection
- Conductor cross section: 0.14 mm² ... 0.75 mm² (flexible), 0.14 mm² ... 0.5 mm² (solid)
- Conductor cross section AWG: 26 ... 18 (flexible), 26 ... 20 (solid)
- Wire diameter including insulation: 0.75 mm ... 2 mm
- Frequency of connections between conductors of the same cross section: 10
- Wire insulation material: PVC / PE / PP / rubber
- Insertion/withdrawal cycles: ≥ 100
- Torque: M12 knurl, 5 Nm (Pressure nut)
- Flammability rating according to UL 94: V0
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: PA 6.6
- Material of grip body: Zinc die-cast, nickel-plated
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
- eCl@ss 5.1: 27143400
- eCl@ss 6.0: 27279200
- eCl@ss 7.0: 27440104
- eCl@ss 8.0: 27440104
- eCl@ss 9.0: 27440102
- ETIM 5.0: EC002635
- ETIM 6.0: EC002635
- ETIM 7.0: EC002635
