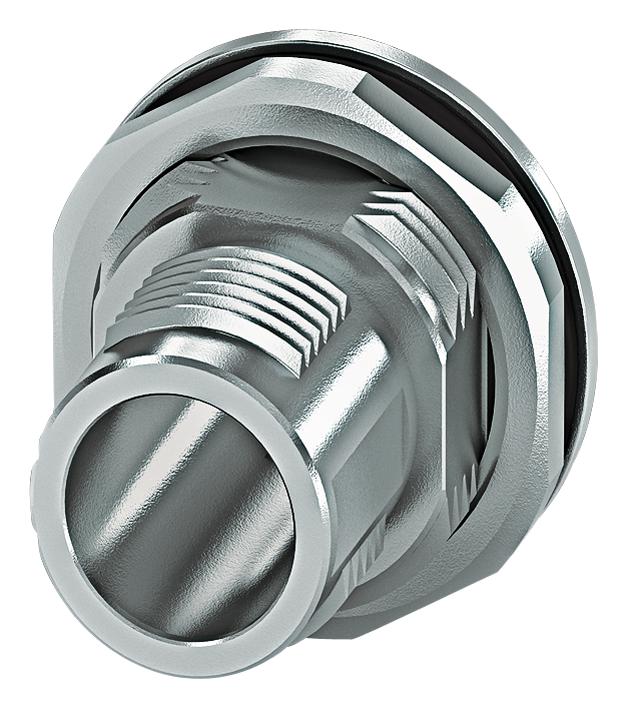

Phoenix Contact 1413999 Industrial Screw Connector
The Housing screw connection SACC-BP-M-M12/M15-6-THR is designed for easy device integration with mechanical port screw connections and threaded fastening. It features a SPEEDCON fast locking system that reduces cabling times, ensuring quick and reliable connections. The rear mounting M15 x 1 connector is suitable for diverse industrial applications, with robustness thanks to zinc die-cast, nickel-plated materials, and IP67 protection when correctly locked. Operating within -25°C to 85°C, it complies with IEC 61076-2-101 standards, making it a durable and efficient choice for industrial environments.
Phoenix Contact 1413999 Industrial Screw Connector Specifications:
- Standards/regulations: IEC 61076-2-101
- Ambient temperature (operation): -25°C to 85°C
- Ambient temperature (without mechanical actuation): -40°C to 85°C
- Degree of protection: IP67 (when correctly plugged in and locked)
- Material: Zinc die-cast, nickel-plated; Brass, nickel-plated (locking nut); FKM sealing material
- Insertion/withdrawal cycles: > 100
- Torque: 1.5 Nm to 2 Nm (installation-side)
- Spacing between PCB top edge and back of front plate: 6 mm
- Standards and Regulations: IEC 61076-2-101
- Rated voltage and current depend on specific application
- Weight per piece: 10.510 g
- Compatible with M12 connector standards, EAC approved
Buy the Buy Phoenix Contact Housing screw connection Part Number 1413999 Online
Purchase the Phoenix Contact housing screw connection online for dependable industrial applications. Featuring a SPEEDCON fast locking system, rear M15 mounting, zinc die-cast construction, and IP67 protection, this connector ensures quick and secure assembly. Suitable for a wide temperature range from -25°C to 85°C, it adheres to IEC 61076-2-101 standards, providing durability and high performance for automation, machinery, and control systems. Reliable, easy to install, and approved for global use, it's ideal for demanding environments.
Order your Phoenix Contact SACC-BP-M-M12/M15-6-THR housing screw connection today and ensure quick, reliable, and secure connections for your industrial projects.
