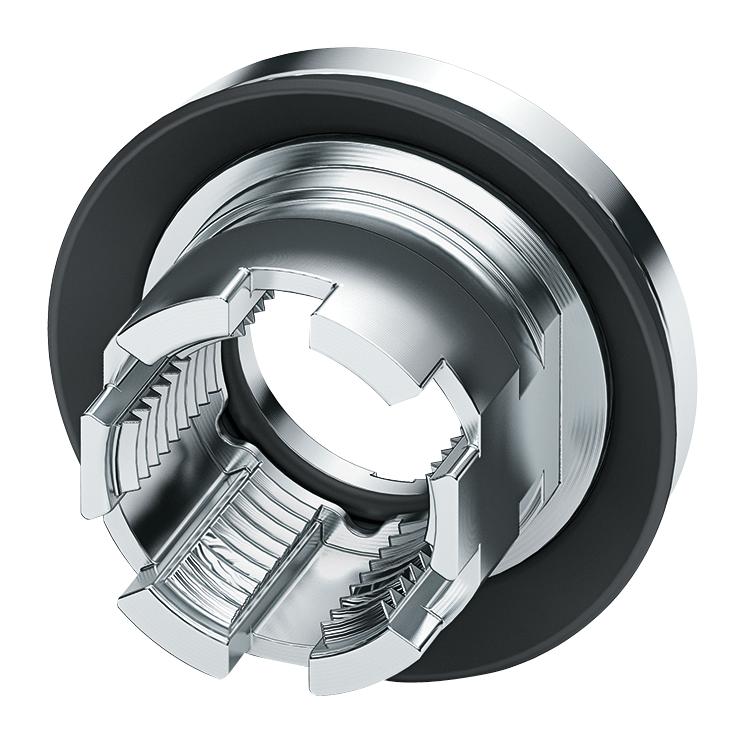

Phoenix Contact 1419571 M12 connector
The M12 threaded sleeve is designed for straight, SMD-solderable M12 socket contact inserts, featuring a tolerance-compensating function to prevent stress on solder joints. It is suitable for front plates ranging from 2.3 mm to 3.0 mm thick and offers easy, tool-free mounting with optional port sealing without a protective cap. The connector complies with IEC 61076-2-101 standards, has a degree of protection of IP67, and is made from zinc die-cast and FKM sealing material. It withstands operating temperatures of -25°C to 85°C and -40°C to 85°C without mechanical actuation, ensuring reliable performance in industrial environments.
Phoenix Contact 1419571 M12 connector Specifications:
- Material: Zinc die-cast, nickel-plated
- Sealing Material: FKM
- Standards/Regulations: IEC 61076-2-101
- Flammability Rating: UL 94 V-0
- Ambient Temperature (operation): -25°C to 85°C
- Ambient Temperature (without mechanical actuation): -40°C to 85°C
- Degree of Protection: IP67, IP54 with sealing cap
- Mounting Type: Rear, lockable 2-section
- Minimum Order Quantity: 10 pieces
- Weight per Piece: 7.839 grams
- Country of Origin: Germany
- Connector Type: Screw connection
- Suitable for front plates: 2.3 mm to 3.0 mm thick
- Standard: IEC 61076-2-101
- Additional: Suitable for SMD solderable socket contact inserts
Buy the Phoenix Contact 1419571 – Reliable M12 Connector for Industrial Applications
Secure your industrial connections with the reliable M12 connector featuring tolerance compensation and IP67 protection. Designed for easy, tool-free mounting on front plates between 2.3 mm and 3.0 mm thick, this zinc die-cast connector with FKM sealing ensures durability in harsh environments. Meets IEC 61076-2-101 standards and withstands temperatures from -25°C to 85°C, making it ideal for automation systems, industrial equipment, and sensor connections. Purchase online today for dependable, quick installation and superior performance.
Buy Phoenix Contact 1419571 now and experience unmatched reliability and performance in industrial automation and connection solutions.
