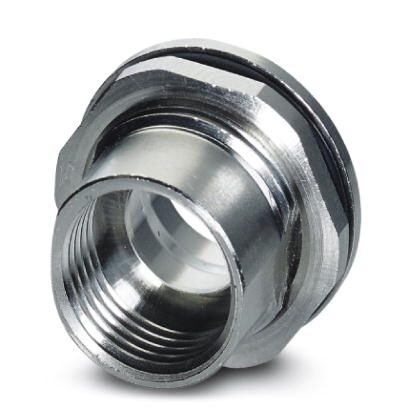

Phoenix Contact 1414004 M12 Socket Connector Housing
The Phoenix Contact SACC-BP-F-M12/M15-6-THR housing provides a robust and reliable connection solution for industrial applications. Its mechanical port screw connections with threaded fastening simplify device integration, while the two-piece connector design enables wave and THR soldering for flexible PCB assembly. The housing is constructed with zinc die-cast and nickel-plated materials for durability and corrosion resistance. It is suitable for applications requiring a degree of protection against dust and water ingress (IP67). Compliant with IEC 61076-2-101 standards, this connector ensures reliable data transmission and power delivery in harsh environments.
Phoenix Contact 1414004 M12 Socket Connector Housing Specifications:
- Packing unit: 1 STK
- Minimum order quantity: 20 STK
- Weight per Piece (excluding packing): 10.000 g
- Custom tariff number: 79070000
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket), -40 °C ... 85 °C (without mechanical actuation)
- Degree of protection: IP67
- Standards/regulations: M12 connector IEC 61076-2-101
- Insertion/withdrawal cycles: > 100
- Torque: 1.5 Nm ... 2 Nm (Installation-side)
- Mounting type: Rear mounting M15 x 1
- Material, knurls: Zinc die-cast, nickel-plated
- Material: Zinc die-cast (nickel-plated)
- Sealing material: FKM (O-ring on housing), FKM (O-ring (pin connector pattern))
- eCl@ss 5.1: 27143423
- eCl@ss 6.0: 27143423
- eCl@ss 8.0: 23100602
- eCl@ss 9.0: 23100602
- ETIM 4.0: EC001855
- ETIM 5.0: EC002350
- Approval details: EAC B.01742
Buy the 1414004 PHOENIX CONTACT M12 Socket Connector Housing | myMectronic
Purchase the Phoenix Contact 1414004 M12 Socket Connector Housing securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1414004?
You can click on the BUY or RFQ button to purchase 1414004 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1414004?
You can download the 1414004 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1414004?
Phoenix Contact
