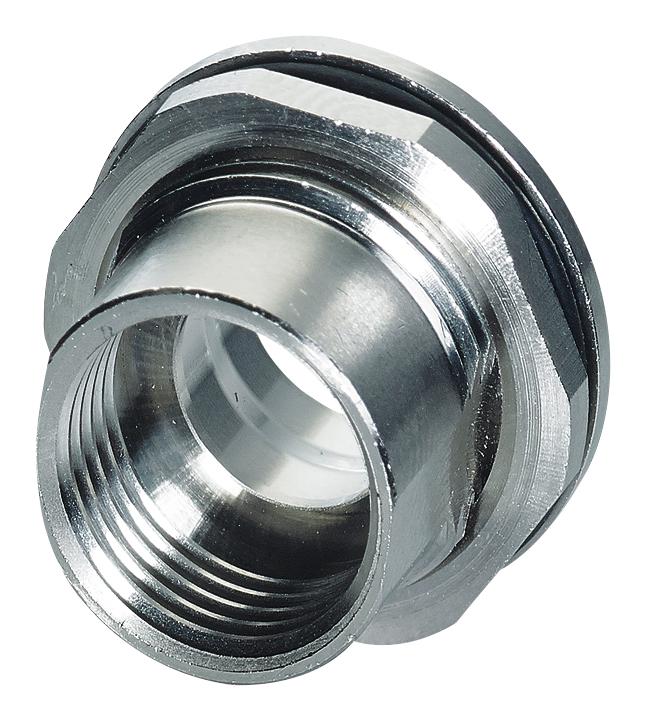

Phoenix Contact 1414021 Industrial Screw Connector
The housing screw connection for M12 sockets features rear mounting with a protected IP67 rating when properly connected and locked. It is made from zinc die-cast, nickel-plated for durability, and includes an FKM sealing material for moisture resistance. The connector supports over 100 insertion and withdrawal cycles, with a torque requirement of 1.5 Nm to 2 Nm for installation. Designed to meet IEC 61076-2-101 standards, it ensures reliable and efficient electrical connections suitable for industrial environments, simplifying device integration and PCB assembly with a robust, corrosion-resistant build.
Phoenix Contact 1414021 Industrial Screw Connector Specifications:
- Ambient temperature (operation): -25°C to 85°C
- Ambient temperature (no mechanical actuation): -40°C to 85°C
- Degree of protection: IP67 (when correctly locked and plugged in)
- Material: Zinc die-cast, nickel-plated housing and locking nut
- Sealing material: FKM O-ring for moisture resistance
- Insertion/withdrawal cycles: > 100
- Torque for installation: 1.5 Nm to 2 Nm
- Standards: IEC 61076-2-101 compliant M12 connector
- Connector type: Rear mounting, M15 x 1 threaded connection
- Weight per piece: 9.390 g
- Design features: Mechanical port screw connection, PCB mounting compatible
- Environmental compliance: China RoHS, EAC approval
- Protection class: IP67 when properly connected
- Application: Suitable for industrial environments requiring reliable screw connections
- Approval: EAC FAL B.01742
Buy the Phoenix Contact 1414021 – Reliable Screw Connectors for Industrial Applications
Discover the reliable Phoenix Contact industrial screw connector 1414021, engineered for durability and easy PCB integration. Featuring zinc die-cast housing, FKM sealing for moisture protection, and IP67 rating, this connector is ideal for harsh industrial environments. Supports over 100 insertion cycles with a torque of 1.5 to 2 Nm, ensuring secure connections. Compliant with IEC 61076-2-101 standards, it offers robust mechanical and electrical performance. Perfect for industrial automation, control systems, and instrumentation, ensuring reliable, corrosion-resistant connections for extended operational life.
Order your Phoenix Contact housing screw connection 1414021 today and enhance your industrial connections with dependable, engineered quality.
Frequently Asked Questions
Where can I buy Phoenix Contact 1414021?
You can click on the BUY or RFQ button to purchase 1414021 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1414021?
You can download the 1414021 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1414021?
Phoenix Contact
