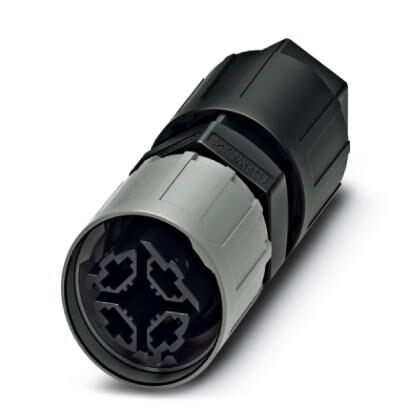

Phoenix Contact 1414703 Quickon Electrical Connector
This is a 3+PE quickon connector with a 0.5 mm² to 1.5 mm² wire capacity, suitable for voltages up to 690 V and currents up to 17.5 A. It features a black finish, includes a quickon nut for easy installation, and accommodates cable diameters ranging from 5 mm to 9.5 mm.
Phoenix Contact 1414703 Quickon Electrical Connector Specifications:
- Rated voltage: 690 V
- Rated current: 17.5 A
- Wire Range: 0.5 mm² to 1.5 mm² (AWG 20-16)
- Cable diameter: 5 mm to 9.5 mm
- Housing: Black, IP68/IP69K rated, robust design for demanding environments
- Locking: Screw locking
- Connection method: QUICKON connection
- Contact surface material: Silver-plated
- Standards: VDE approved, IEC compliant
- Ambient temperature: -40°C to +85°C
- Number of positions: 3+PE
Buy the Phoenix Contact Series Quickon Connector: 1414703
Purchase the Phoenix Contact 1414703 quickon connector online and enjoy fast, easy assembly without special tools. Its robust IP68/IP69K housing ensures durability in harsh environments, while the screw locking guarantees a secure connection. Suitable for wire sizes from 0.5 to 1.5 mm² and cable diameters between 5 and 9.5 mm, this connector simplifies installation, enables quick device replacement, and enhances safety with touch-proof design, making it ideal for industrial automation and electrical systems.
Buy Phoenix Contact 1414703 quickon connector now and experience fast, safe, and reliable electrical connections with IP68/IP69K protection.
Frequently Asked Questions
Where can I buy Phoenix Contact 1414703?
You can click on the BUY or RFQ button to purchase 1414703 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1414703?
You can download the 1414703 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1414703?
Phoenix Contact
