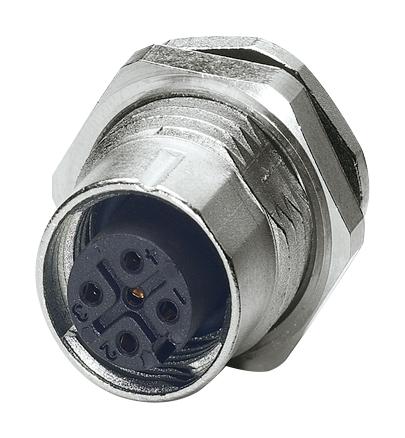

Phoenix Contact 1441891 Sensor/Actuator Socket
This is a flush-type sensor or actuator socket with five positions, featuring shield contact and an M12 SPEEDCON connector. It is A-coded for communication standards, designed for rear or screw mounting with an M16 thread. The connection type is a straight solder connection, providing secure and reliable electrical contact. It complies with IEC 61076-2-101 standards, has an IP67 degree of protection, operates within -40°C to 85°C, and includes accessories like protective caps and seals for enhanced protection and sealing in industrial environments.
Phoenix Contact 1441891 Sensor/Actuator Socket Specifications:
- Cable connection: straight solder, length of solder pin 6mm
- Degree of protection: IP67
- Operating temperature: -40°C to 85°C
- Standards: IEC 61076-2-101
- Housing mounting: M16 thread, rear/screw mounting
- Connector type: M12 SPEEDCON, 5-pin, A-coded
- Material: Metal housing, insulation not specified
- Dimensions: Suitable for panel thickness up to 4.5 mm with anti-rotation protection
- Additional accessories: protective cap, screw plugs, flat gasket
Buy the Phoenix Contact 1441891 – Reliable Sensor/Actuator Socket for Industrial Applications
Order the Phoenix Contact sensor and actuator socket designed for industrial environments. This five-position, shielded connector features IP67 protection, M12 SPEEDCON quick-lock system, and supports rear or screw mounting with M16 thread. Reliable solder connection ensures secure data and power transmission, suitable for harsh conditions operating from -40°C to 85°C. Compatible with IEC standards, it includes accessories like protective caps and gaskets for sealing. Perfect for automation, machinery, and control panel applications, ensuring long-lasting durability and high transmission reliability.
Get Phoenix Contact 1441891 today—built for precise sensor connections and durable industrial performance.
Frequently Asked Questions
Where can I buy Phoenix Contact 1441891?
You can click on the BUY or RFQ button to purchase 1441891 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1441891?
You can download the 1441891 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1441891?
Phoenix Contact
