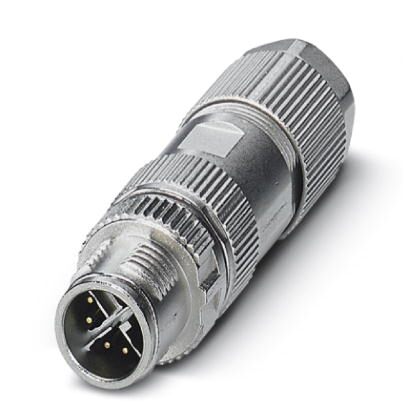

Phoenix Contact 1417430 Ethernet M12 Connector
The 1417430 is an 8-position, shielded straight plug connector designed for the M12 SPEEDCON bus system. It supports Ethernet CAT6A standards (IEC 11801) with data transfer rates up to 10 Gbps. The connector features X-coded configuration for high-speed data transmission and utilizes Piercecon connection technology. Its contact components are made of bright alloy/white bronze finished bronze, with nickel-plated zinc die-cast knurl parts. The housing has a diameter of 15mm and length of 46.5mm, compatible with external cable diameters from 4mm to 8mm, ensuring reliable industrial communication.
Phoenix Contact 1417430 Ethernet M12 Connector Specifications:
- Connector Type: M12 bus system connector
- Positions: 8-pin, X-coded
- Standard: IEC 61076-2-109
- Data Rate: Up to 10 Gbps
- Shielding: 360° shielded for interference protection
- Degree of Protection: IP65
- Material: Contact - bright alloy/white bronze, housing - zinc die-cast, nickel-plated
- Cable Compatibility: Suitable for 4 mm to 8 mm external cable diameter
- Housing Diameter: 15 mm
- Housing Length: 46.5 mm
- Temperature Range: -40°C to 85°C
- Standards: UL Recognized, cUL, EAC
- Compliance: China RoHS environment friendly
Buy the Phoenix Contact 1417430 – Reliable Ethernet M12 Connector for Industrial Applications
Purchase the Phoenix Contact 1417430 Ethernet M12 connector online today to enable robust industrial networking. Featuring 8-pin, X-coded design, IP65 protection, and supporting Ethernet CAT6A data rates up to 10 Gbps, this connector ensures fast, reliable communication in harsh environments. Its Zinc die-cast housing with nickel plating and Piercecon locking system allows quick, secure installation. Perfect for automation, factory, and industrial network setups, order now for seamless connectivity and durable operation in demanding settings.
Order your Phoenix Contact 1417430 shielded Ethernet M12 connector today and ensure high-speed, reliable industrial communication with quick installation and IP65 protection.
Frequently Asked Questions
Where can I buy Phoenix Contact 1417430?
You can click on the BUY or RFQ button to purchase 1417430 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1417430?
You can download the 1417430 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1417430?
Phoenix Contact
