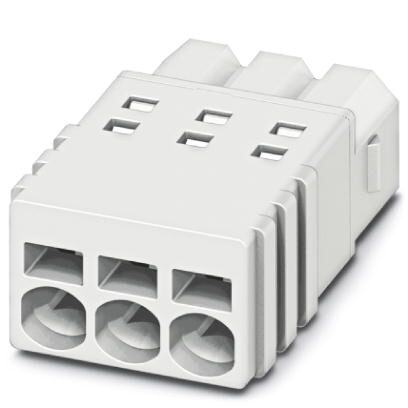

Phoenix Contact 1704854 3-Position Plug Connector
The Phoenix Contact PTSM 0,5/ 3-P-2,5 WH (part number 1704854) is a miniature plug connector designed for use with THR and SMD base strips. It offers a compact solution for connecting wires in a variety of industrial applications, including automation, control systems, and power distribution. The connector's 2.5mm pitch allows for high-density wiring, while the push-in spring connection ensures reliable and easy termination. Constructed with HT PA insulating material and featuring a tin contact surface, this connector provides excellent electrical performance and durability. It is rated for a nominal current of 6A and a voltage up to 160V, making it suitable for a wide range of power transmission needs. Its compliance with EN-VDE standards and UL/CUL recognition further enhances its versatility and reliability.
Phoenix Contact 1704854 3-Position Plug Connector Specifications:
- Nominal current: 6 A
- Rated voltage (III/2): 160 V
- Number of positions: 3
- Pitch: 2.5 mm
- Connection method: Push-in spring connection
- Color: white
- Contact surface: Tin
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 0.88 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Length: 15 mm
- Height: 5 mm
- Dimension a: 5 mm
- Insulating material group: I
- Rated surge voltage (III/3): 2.5 kV
- Rated surge voltage (III/2): 2.5 kV
- Rated surge voltage (II/2): 2.5 kV
- Rated voltage (III/3): 100 V
- Rated voltage (II/2): 320 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 0.5 mm²
- Maximum load current: 6 A
- Insulating material: HT PA
- Flammability rating according to UL 94: V0
- Stripping length: 6 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 0.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 0.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 0.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 20
- Minimum AWG according to UL/CUL: 26
- Maximum AWG according to UL/CUL: 20
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27141190
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440402
- eCl@ss 9.0: 27440402
- ETIM 3.0: EC001121
- ETIM 4.0: EC002638
- ETIM 5.0: EC002637
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
