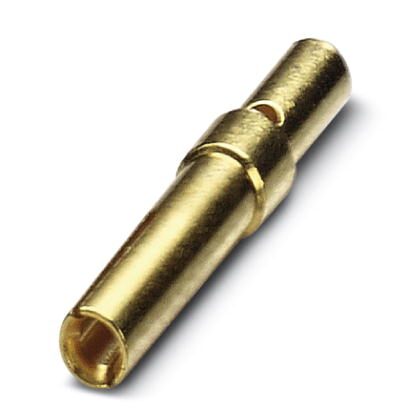

Phoenix Contact 1418787 D-SUB Crimp Contact
The PHOENIX CONTACT 1418787 D-SUB crimp contact is a standard contact specifically engineered for use with D-SUB contact inserts. It features a crimp connection method, ensuring a secure and reliable electrical connection. The contact supports a wire gauge range of AWG 28 to 26, making it suitable for a variety of applications. Constructed from a copper alloy with a gold-plated surface (0.2 µm gold over nickel), this contact provides excellent conductivity and corrosion resistance. Its high-grade, turned design contributes to its overall performance and durability, making it a dependable choice for various industrial and commercial applications.
Phoenix Contact 1418787 D-SUB Crimp Contact Specifications:
- Connection method: Crimp connection
- AWG solid min: 28
- AWG solid max: 26
- Conductor cross section: 0.08 mm² ... 0.12 mm²
- Weight: 0.237 g
- Ambient temperature (operation): -55 °C ... 130 °C
- Contact surface material: 0.2 µm, gold over nickel
- Contact material: Copper alloy
- Width: 1.74 mm
- Height: 1.74 mm
- Length: 13.6 mm
- Rated current: 5 A (at 20 °C)
- Standards and Regulations: DIN 41652
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- Custom tariff number: 85366990
- Country of origin: Switzerland
