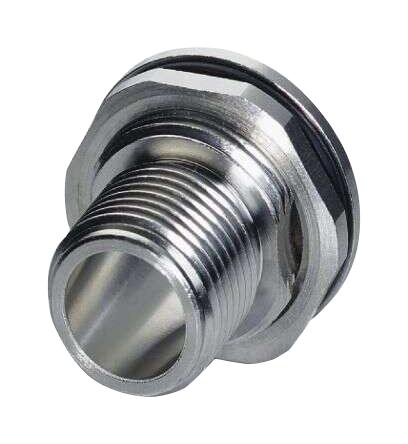

Phoenix Contact 1420826 M12 Screw Housing Connector
The Phoenix Contact SACC-BP-M-M12/M15-6-THR PW (part number 1420826) is a robust M12 screw housing connector designed for industrial applications. It offers easy device integration thanks to mechanical port screw connections with threaded fastening and efficient PCB assembly through THR soldering. The connector is suitable for 2-piece K, L, and M-coded THR contact carriers and provides a degree of protection of IP67 when correctly plugged and locked. It is manufactured in Germany with high-quality materials like brass and FKM, ensuring durability and reliability in harsh environments. The connector is designed to withstand temperatures from -25°C to 85°C and supports insertion/withdrawal cycles exceeding 100.
Phoenix Contact 1420826 M12 Screw Housing Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 20 pc
- GTIN: 4055626280394
- Weight per Piece (excluding packing): 12.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket)
- Degree of protection: IP67 (correctly plugged in and locked)
- Connection method: THR- und Wellenlötkontakte
- Insertion/withdrawal cycles: > 100
- Torque: 1.5 Nm ... 2 Nm (Installation-side)
- Mounting type: Rear mounting M15 x 1
- Thread type: M15 x 1
- Material: Brass, nickel-plated
- Sealing material: FKM
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 50 years
