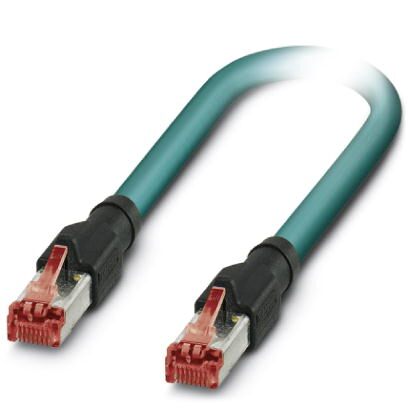

Phoenix Contact 1423032 Ethernet Cable
The Phoenix Contact NBC-R4AC/0,3-94Z/R4AC is a pre-assembled, shielded Ethernet cable ideal for connecting network devices. This cable offers robust performance and protection against electromagnetic interference, ensuring reliable data transfer in industrial and commercial environments. It is designed with RJ43 connectors on both ends and a length of 0.3 meters, making it suitable for short-distance connections. The cable's shielding and robust construction contribute to its longevity and consistent performance, making it a dependable choice for critical network infrastructure.
Phoenix Contact 1423032 Ethernet Cable Specifications:
- Packing unit: 1 STK
- GTIN: 4055626323732
- Weight per Piece: 40.000 g
- Custom tariff number: 85444210
- Country of origin: China
- Length of cable: 0.3 m
- Ambient temperature (operation): -20 °C ... 70 °C (RJ45 connector)
- Number of positions: 8
- Signal type/category: Ethernet CAT5 (IEC 11801:2002), 1 Gbps
- Degree of pollution: 2
- Head type: Plug straight RJ45 / IP20
- No. of positions (pin connector pattern): 8 (8)
- Insertion/withdrawal cycles: ≥ 750
- Material (component): CuSn (Contact), Ni/Au (Contact surface), PC (Contact carriers), PA (Housing)
- Flammability rating according to UL 94: V2
- Cable type: Ethernet
- Cable structure: 4x2xAWG26/7; SF/UTP
- Conductor cross section: 4x 2x 0.14 mm²
- AWG signal line: 26
- Conductor structure signal line: 7x 0.16 mm
- Core diameter including insulation: 0.92 mm
- Thickness, insulation: 0.19 mm (Signal line)
- Wire colors: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown
- Twisted pairs: 2 cores to the pair
- Overall twist: 4 pairs
- Shielding: Tinned copper braided shield
- Optical shield covering: 85 %
- External sheath, color: water blue RAL 5021
- External cable diameter D: 6.2 mm ±0.2 mm
- Smallest bending radius, fixed installation: 51.2 mm
- Smallest bending radius, movable installation: 51.2 mm
- Outer sheath, material: PUR
- Material conductor insulation: PE
- Conductor material: Bare Cu litz wires
- Insulation resistance: ≥ 500 MΩ*km (at 20 °C)
- Conductor resistance: ≤ 290 Ω/km (at 20 °C)
- Wave impedance: 100 Ω ±15 Ω (at 100 MHz)
- Test voltage Core/Core: 700 V (50 Hz, 1 min.)
- Test voltage Core/Shield: 700 V (50 Hz, 1 min.)
- Flame resistance: IEC 60332-1-2
- Halogen-free: According to IEC 60754-1
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Ambient temperature (installation): -20 °C ... 80 °C
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 8.0: 27061801
- eCl@ss 9.0: 27061801
- ETIM 5.0: EC000830
- ETIM 6.0: EC000830
- UNSPSC 13.2: 26121604
Buy the 1423032 PHOENIX CONTACT Ethernet Cable | myMectronic
Purchase the Phoenix Contact 1423032 Network Cable with confidence and ensure secure data connections.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1423032?
You can click on the BUY or RFQ button to purchase 1423032 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1423032?
You can download the 1423032 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1423032?
Phoenix Contact
