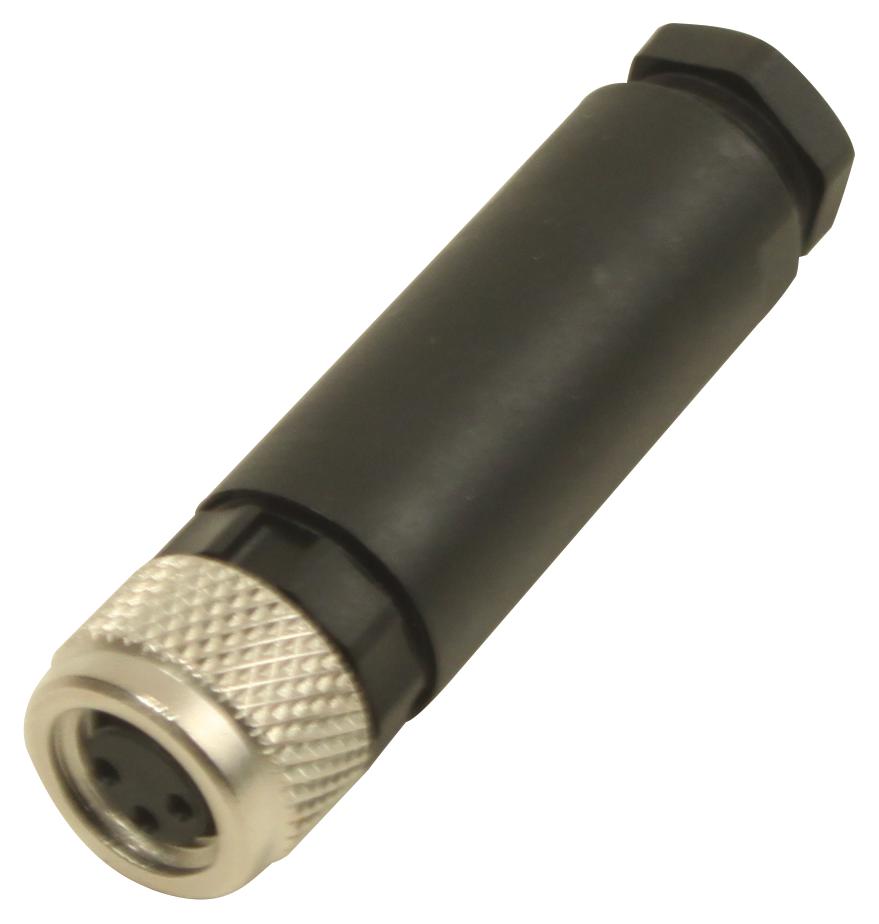

Phoenix Contact SACCM8FS3CONMSW 3-Position Connector
The SACC-M 8FS-3CON-M-SW is a three-position plug-in connector designed with a nickel-plated brass knurled coupling. It is compatible with PLUSCON I/O devices and PLC controller cable assemblies. The connector features CuZn contacts with gold-plated contact surfaces and a PA contact carrier. It supports wire connections with or without ferrules (without insulation). The device has an IP67 protection rating, suitable for environments requiring water and dust resistance. It accommodates 26 to 20 AWG conductors and operates within a temperature range of -40°C to 85°C. Primarily used in sensing and instrumentation applications.
Phoenix Contact SACCM8FS3CONMSW 3-Position Connector Specifications:
- Number of Positions: 3
- Contact Material: CuZn
- Contact Surface Material: Au
- Contact Carrier Material: PA
- Knurl Material: Nickel-plated brass
- Sealing Material: NBR
- Flammability Rating: UL 94 HB
- External Cable Diameter: 3.5mm to 5mm
- Rated Current: 4A at 40°C
- Rated Voltage: 60V
- Operating Temperature: -40°C to 85°C
- Degree of Protection: IP67
- Conductor Cross Section: 0.14 mm² to 0.5 mm²
- Conductor AWG: 26 to 20
- Number of Insertion/Withdrawal Cycles: 100
- Torque for Knurled Body: 0.2 Nm
- Standards/Regulations: IEC 61076-2-104
- Environmental Compliance: China RoHS
Buy the Phoenix Contact SACCM8FS3CONMSW – Reliable 3-Position IP67 Connector for Industrial Applications
Secure your industrial wiring with the high-quality 3-Position Connector designed for robustness, IP67 protection, and versatile wiring options. Easy to install with screw connection technology, it supports wire sizes from 26 to 20 AWG and withstands temperatures from -40°C to 85°C, ensuring reliable operation in challenging environments. Perfect for sensing and instrumentation tasks, this connector features durable gold-plated contacts, nickel-plated brass knurling for a secure grip, and complies with IEC standards. Shop online now for dependable connections that meet your industrial needs.
Buy Phoenix Contact SACCM8FS3CONMSW now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Phoenix Contact SACCM8FS3CONMSW?
You can click on the BUY or RFQ button to purchase SACCM8FS3CONMSW from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SACCM8FS3CONMSW?
You can download the SACCM8FS3CONMSW datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SACCM8FS3CONMSW?
Phoenix Contact
