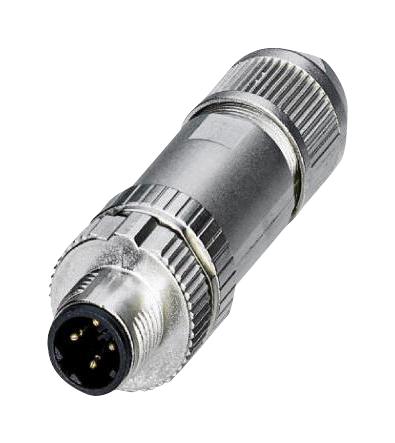

Phoenix Contact 1424682 4-Position PROFINET Connector
The PHOENIX CONTACT SACC-MSD-4PL SH PN SCO connector is a robust and reliable solution for PROFINET CAT5 networks. Its shielded design provides excellent protection against electromagnetic interference, ensuring stable signal transmission in demanding industrial environments. The spring-cage connection offers secure and vibration-resistant connections, while the SPEEDCON fast locking system simplifies installation and reduces downtime. This connector is ideal for applications requiring a compact, shielded, and easy-to-use connection solution.
Phoenix Contact 1424682 4-Position PROFINET Connector Specifications:
- External diameter: 4 mm ... 8 mm
- Stripping length of the sheath: 32 mm
- Stripping length of the individual wire: 6 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Degree of protection: IP65
- Rated current at 40°C: 4 A
- Rated voltage: 60 V DC
- AC Voltage: 48 V AC
- Number of positions: 4
- Insulation resistance: ≥ 10 MΩ
- Coding: D - data
- Standards/regulations (Connector): M12 connector IEC 61076-2-101
- Standards/regulations (Vibration): Shock, vibration EN 50155:2001
- Signal type/category: PROFINET CAT5 (IEC 11801), 100 Mbps
- Insertion/withdrawal cycles: ≥ 100
- Torque (M12 knurl): 0.4 Nm
- Torque (Connector with coupling sleeve): 0.8 Nm
- Torque (Pressure nut with coupling sleeve): 3 Nm
- Conductor cross section: 0.14 mm² ... 0.75 mm²
- Conductor cross section (ferrule): 0.08 mm² ... 0.5 mm²
- Conductor cross section AWG: 26 ... 18
- Conductor cross section AWG (ferrule): 28 ... 20
- Flammability rating according to UL 94: V0
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: PA 6.6
- Material of grip body: Zinc die-cast, nickel-plated
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Packing unit: 1
- GTIN: 4055626376097
Buy the 1424682 PHOENIX CONTACT 4-Position PROFINET Connector | myMectronic
Purchase the PHOENIX CONTACT 1424682 connector securely online for your industrial automation needs.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1424682?
You can click on the BUY or RFQ button to purchase 1424682 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1424682?
You can download the 1424682 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1424682?
Phoenix Contact
