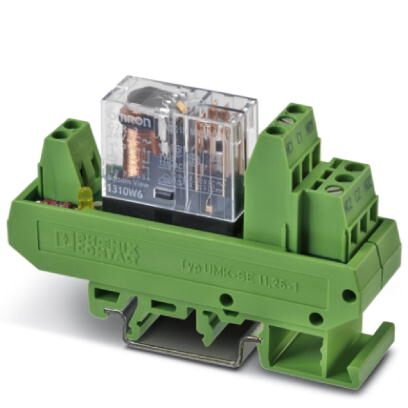

Phoenix Contact 5542231 VARIOFACE Relay Module
The PHOENIX CONTACT UMK 22-REL 5/21 VARIOFACE relay module provides a robust and reliable solution for switching applications in industrial automation and control systems. Its VARIOFACE design allows for flexible integration into DIN rail systems. The module offers safe isolation between the coil and contact sides, enhancing system safety and reliability. With a 1PDT contact configuration and AgCdO contacts, it can handle switching voltages up to 250V AC and currents up to 10A. The integrated damping diode protects the coil from voltage spikes, while the LED operating voltage display provides clear status indication. This relay module is designed for long-term performance, boasting a mechanical service life of 1 x 10^7 cycles and a 100% operating factor.
Phoenix Contact 5542231 VARIOFACE Relay Module Specifications:
- Packing unit: 1 STK
- GTIN: 4046356684620
- Weight per Piece (excluding packing): 47.400 g
- Custom tariff number: 85364190
- Country of origin: United States
- Width: 22.5 mm
- Height: 77 mm
- Depth: 50 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Nominal input voltage UN: 5 V DC
- Typical input current at UN: 118.6 mA
- Typical response time: 15 ms
- Typical release time: 5 ms
- Protective circuit: Damping diode
- Operating voltage display: LED
- Contact type: 1 PDT
- Contact material: AgCdO
- Maximum switching voltage: 250 V AC (30 V DC)
- Minimum switching voltage: 5 V (at 100 mA)
- Min. switching current: 100 mA (At 5 V)
- Limiting continuous current: 10 A
- Test voltage relay winding/relay contact: 5 kV (50/60 Hz, 1 min.)
- Operating mode: 100% operating factor
- Mechanical service life: 1 x 10^7 cycles
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Connection name (Coil side): Coil side
- Connection method (Coil side): Screw connection
- Stripping length (Coil side): 7 mm
- Conductor cross section solid (Coil side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Coil side): 0.14 mm² ... 1.5 mm²
- Conductor cross section AWG (Coil side): 30 ... 14
- Connection name (Contact side): Contact side
- Connection method (Contact side): Screw connection
- Stripping length (Contact side): 7 mm
- Conductor cross section solid (Contact side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (Contact side): 0.14 mm² ... 1.5 mm²
- Conductor cross section AWG (Contact side): 30 ... 14
