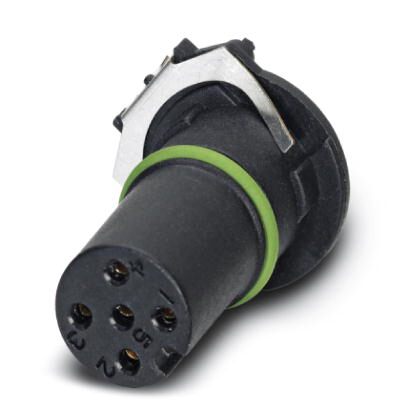

Phoenix Contact 1432363 M12 Flush-Type Connector
The Phoenix Contact SACC-CI-M12FS-5CON-L180-THR SH is a robust M12 flush-type connector designed for reliable connections in industrial automation, sensor, and actuator applications. Its A-coding ensures compatibility with standard M12 systems, while the THR solder connection simplifies PCB integration. The connector's design minimizes mounting costs and allows for easy device integration through mechanical port screw connections or direct front plate integration. It's suitable for harsh environments and offers a secure, long-lasting connection.
Phoenix Contact 1432363 M12 Flush-Type Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 60 pc
- Weight per Piece (excluding packing): 0.82 g
- Custom tariff number: 85389099
- Country of origin: Germany
- Ambient temperature (operation): -25 °C ... 85 °C (Plug / socket)
- Degree of protection: IP67
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Rated surge voltage: 1.5 kV
- Number of positions: 5
- Insulation resistance: ≥ 10 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: THR solder connection
- Insertion/withdrawal cycles: > 100
- Torque: 3 Nm ... 4 Nm (Installation-side)
- Mounting type: PCB mounting
- Type of packaging: Tray
- Flammability rating according to UL 94: V0
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PPA
- Sealing material: FKM / EPDM
- Ambient temperature (operation) cable: -40 °C ... 85 °C (cable, fixed installation)
- Ambient temperature (operation) cable flexible: -25 °C ... 85 °C (cable, flexible installation)
- Standard designation: M12 connector
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27260701
- eCl@ss 6.0: 27279220
- eCl@ss 7.0: 27440103
- eCl@ss 8.0: 27440103
- eCl@ss 9.0: 27440102
- ETIM 3.0: EC002061
- ETIM 4.0: EC002061
- ETIM 5.0: EC002061
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
