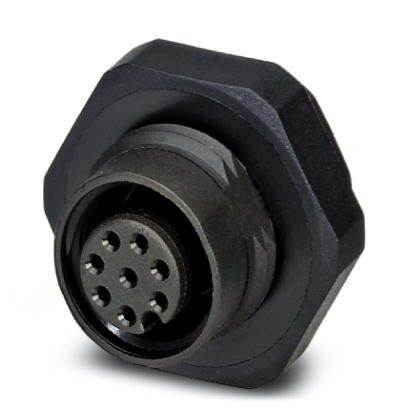

Phoenix Contact 1436327 M12 Sensor/Actuator Connector
The Phoenix Contact SACC-DSI-M12FS-8CON-L180PSCUP is a robust M12 flush-type connector specifically engineered for sensor and actuator applications in industrial automation and control systems. This connector provides a secure and reliable connection with its A-coding and IP67 protection rating, safeguarding against dust and water ingress. The connector's design facilitates rear/screw mounting with a Pg9 thread, ensuring a stable and secure installation. It is commonly used in applications requiring reliable data transmission and power delivery, such as automated machinery, robotics, and process control systems. The solder cup terminals simplify the connection process, while the robust construction ensures long-term durability in demanding environments.
Phoenix Contact 1436327 M12 Sensor/Actuator Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 20 pc
- GTIN: 4046356438292
- Weight per Piece (excluding packing): 7.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -40 °C ... 85 °C (without mechanical actuation)
- Degree of protection: IP67
- Rated current at 40°C: 2 A
- Rated voltage: 30 V
- Rated surge voltage: 0.8 kV
- Number of positions: 8
- Insulation resistance: ≥ 20 MΩ*km
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Insertion/withdrawal cycles: > 100
- Torque: 3 Nm ... 4 Nm (Installation-side)
- Mounting type: Rear mounting Pg9 With locking nut
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA 6.6
- Material, knurls: PA 6.6
- Sealing material: Viton
- Conductor cross section: 0.25 mm²
- Conductor structure signal line: 14x 0.15 mm
- Core diameter including insulation: 1.15 mm ±0.07 mm
- Thickness, insulation: 0.21 mm
- Conductor resistance: ≤ 57.6 mΩ/m
- Nominal voltage, cable: 300 V
- Test voltage, cable: 2000 V AC
- Ambient temperature (operation) cable: -25 °C ... 85 °C (cable, flexible installation)
- China RoHS: Environmentally Friendly Use Period = 50
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27143423
- eCl@ss 5.1: 27143400
- eCl@ss 6.0: 27279200
- eCl@ss 7.0: 27440103
- eCl@ss 8.0: 27440103
- eCl@ss 9.0: 27440102
- ETIM 3.0: EC002061
- ETIM 4.0: EC002061
- ETIM 5.0: EC002061
- ETIM 6.0: EC002061
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 39121413
Buy the 1436327 PHOENIX CONTACT M12 Sensor/Actuator Connector | myMectronic
Purchase the Phoenix Contact 1436327 SACC-DSI-M12FS-8CON-L180PSCUP connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 1436327?
You can click on the BUY or RFQ button to purchase 1436327 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1436327?
You can download the 1436327 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1436327?
Phoenix Contact
