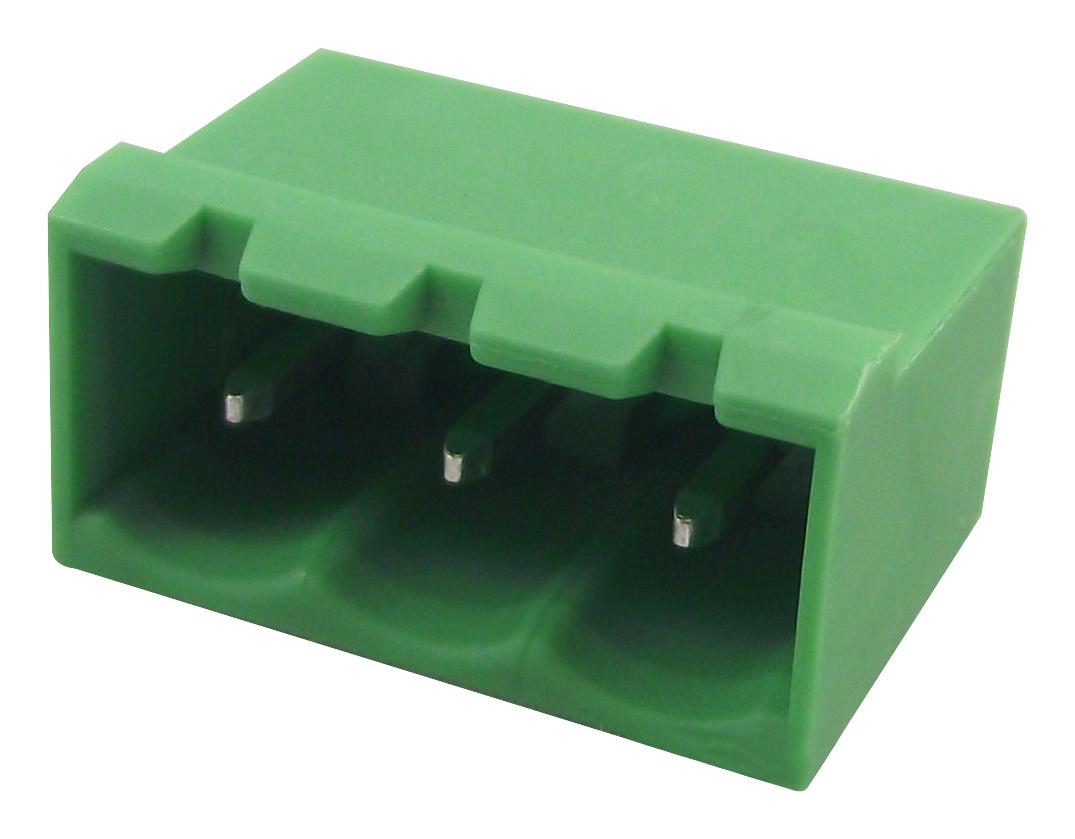

Phoenix Contact MSTBVA253G508 Terminal Block Strip
The Phoenix Contact MSTBVA 2,5/ 3-G-5,08 terminal block strip is a versatile component used in a wide range of industrial applications. Designed with a 5.08mm pitch and 3 positions, it provides a secure and reliable connection for various electrical circuits. The green color indicates its suitability for specific applications, and the tin-plated contact surface ensures excellent conductivity and corrosion resistance. This terminal block is ideal for applications requiring robust and efficient power distribution, such as automation systems, control panels, and machinery. Its compatibility with wave soldering techniques allows for efficient and automated assembly processes, making it a cost-effective solution for high-volume production.
Phoenix Contact MSTBVA253G508 Terminal Block Strip Specifications:
- Nominal current: 12 A
- Rated voltage (III/2): 320 V
- Number of positions: 3
- Pitch: 5.08 mm
- Color: green
- Contact surface: Tin
- Mounting: Wave soldering
- Length: 8.6 mm
- Dimension a: 10.16 mm
- Width: 17.24 mm
- Constructional height: 12 mm
- Height: 15.9 mm
- Length of the solder pin: 3.9 mm
- Pin dimensions: 1 x 1 mm
- Hole diameter: 1.4 mm
- Insulating material group: I
- Rated surge voltage (III/3): 4 kV
- Rated surge voltage (III/2): 4 kV
- Rated surge voltage (II/2): 4 kV
- Rated voltage (III/3): 250 V
- Rated voltage (II/2): 630 V
- Connection in acc. with standard: EN-VDE
- Maximum load current: 12 A
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Range of articles: MSTBVA 2,5/..-G
Buy the MSTBVA 2,5/ 3-G-5,08 PHOENIX CONTACT Terminal Block Strip | myMectronic
Purchase the Phoenix Contact MSTBVA 2,5/ 3-G-5,08 terminal block strip securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact MSTBVA253G508?
You can click on the BUY or RFQ button to purchase MSTBVA253G508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part MSTBVA253G508?
You can download the MSTBVA253G508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of MSTBVA253G508?
Phoenix Contact
