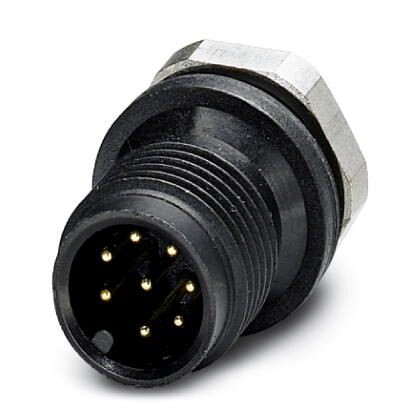

Phoenix Contact 1436440 M12 Flush-Type Connector
The Phoenix Contact SACC-E-M12MS-8CON-M12 flush-type connector is designed for reliable and secure connections in sensor and actuator applications. This 8-position M12 connector, featuring A-coding, offers a robust solution for industrial environments. Its flush-type design allows for seamless integration into panels, while the solder cups facilitate easy and secure connections. Constructed with durable materials like CuZn contacts, PA 66 housing, and Viton sealing, this connector ensures long-lasting performance and resistance to environmental factors. It is commonly used in automated machinery, industrial control systems, and other applications requiring reliable data and power transmission.
Phoenix Contact 1436440 M12 Flush-Type Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 20 pc
- Weight per Piece (excluding packing): 4.0 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -40 °C ... 85 °C (without mechanical actuation)
- Degree of protection: IP67
- Rated current at 40°C: 2 A
- Rated voltage: 30 V
- Rated surge voltage: 0.8 kV
- Number of positions: 8
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Status display: No
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Solder cup
- Insertion/withdrawal cycles: > 100
- Torque: 3 Nm ... 4 Nm (Installation-side)
- Mounting type: Front mounting M12 x 1 With flat nut
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA 66
- Material, knurls: PA 66
- Sealing material: Viton
- Conductor cross section: 0.25 mm²
- Conductor structure signal line: 14x 0.15 mm
- Core diameter including insulation: 1.15 mm ±0.07 mm
- Thickness, insulation: 0.21 mm
- Insulation resistance (cable): ≥ 20 MΩ*km
- Conductor resistance (cable): ≤ 57.6 mΩ/m
- Nominal voltage (cable): 300 V
- Test voltage (cable): 2000 V AC
- Ambient temperature (operation) (cable): -25 °C ... 85 °C (cable, flexible installation)
- Standard designation: M12 connector
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27143423
- eCl@ss 5.1: 27143423
- eCl@ss 6.0: 27143423
- eCl@ss 7.0: 27449001
- eCl@ss 8.0: 27440103
- eCl@ss 9.0: 27440103
- ETIM 3.0: EC002061
- ETIM 4.0: EC002061
- ETIM 5.0: EC002061
- UNSPSC 6.01: 31251501
- UNSPSC 7.0901: 31251501
- UNSPSC 11: 31251501
- UNSPSC 12.01: 31251501
- UNSPSC 13.2: 31251501
