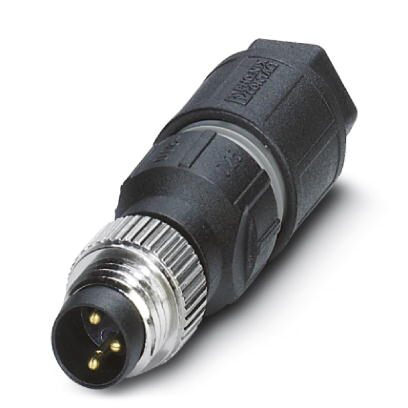

Phoenix Contact 1441008 Sensor/Actuator Connector
The 1441008 is a 3-position, straight plug, universal M8 sensor and actuator connector designed for easy and reliable connections. This A-coded connector features an insulation displacement contact (IDC) system, allowing quick assembly without the need for wire stripping. It has a housing diameter of 12.5mm and a length of 43.4mm, accommodating external cable diameters from 2.5mm to 5mm. Constructed with nickel-plated brass and contact materials of copper-tin alloy, it supports conductors ranging from 24 to 28 AWG, meeting IP65/67 standards for rugged industrial environments.
Phoenix Contact 1441008 Sensor/Actuator Connector Specifications:
- Housing Diameter: 12.5mm
- Length: 43.4mm
- Cable Diameter Range: 2.5mm to 5mm
- Rated Current: 4A at 40°C
- Rated Voltage: 60V
- Number of Contacts: 3
- Conductor Cross-Section: 24-28 AWG
- Contact Material: CuSn (Copper-Tin Alloy)
- Contact Surface Material: Ni/Au
- Insulation Displacement Connection (IDC)
- Standards: M8 connector IEC 61076-2-104
- Ingress Protection: IP65/67
- Operating Temperature: -25°C to 80°C
- Locking: Metal knurl, pressure nut torque 0.6 Nm, knurl torque 0.2 Nm
- Shell Material: Nickel-plated brass
- Housing Material: Thermoplastic TPU GF
- Approvals: UL Recognized, cUL Recognized, GOST
- Pollution Degree: 3
- Surge Voltage Category: II
Buy the Phoenix Contact Series SACC-M 8MS Sensor Connector: 1441008
Shop the Phoenix Contact SACC-M 8MS sensor actuator connector online today. Featuring a durable IP67-rated design, IDC wiring for fast installation, and compatibility with 24-28 AWG conductors, this connector ensures robust industrial automation connections. Its nickel-plated brass housing provides corrosion resistance, while the thermoplastic knurl offers secure grip for easy handling. Ideal for sensor and actuator applications, this plug supports quick assembly, reliability, and long-term performance in harsh environments. Get yours now for seamless automation integration.
Order your Phoenix Contact Series SACC-M 8MS 1441008 sensor connector today and ensure reliable, secure industrial sensor connections.
Frequently Asked Questions
Where can I buy Phoenix Contact 1441008?
You can click on the BUY or RFQ button to purchase 1441008 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1441008?
You can download the 1441008 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1441008?
Phoenix Contact
