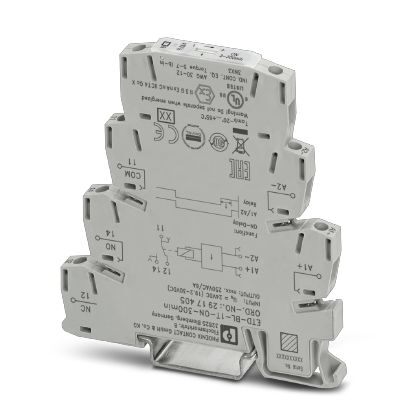

Phoenix Contact ETDBL1TON300MIN Timer Relay with Switch-On Delay
The PHOENIX CONTACT ETD-BL-1T-ON-300MIN is a compact timer relay ideal for controlling time sequences in industrial applications. Its narrow 6.2 mm design width and labeled, illuminated thumbwheel allow for precise and easy setting adjustments. The relay offers a voltage-controlled switch-on delay with a wide adjustable time range (3 to 300 minutes), making it suitable for various automation and control tasks. It is designed for reliable operation and easy integration into standard DIN rail systems.
Phoenix Contact ETDBL1TON300MIN Timer Relay with Switch-On Delay Specifications:
- Packing unit: 1 pc
- Weight per Piece: 60.0 g
- Custom tariff number: 85364190
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Permissible humidity (operation): 15 % ... 85 %
- Noise immunity: EN 61000-6-2
- Input voltage range: 24 V DC (19,2 V DC ...30 V DC)
- Function: ON: With switch-on delay
- Time setting range: 3 min. ... 300 min.
- Contact type: 1 floating PDT
- Output fuse: 6.3 A (fast-blow)
- Status display: Green LED (POWER), Yellow LED (relay active)
- Mechanical service life: Approx. 2 x 10^7 cycles
- Mounting position: any
- Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715
- Color: green
- Housing insulation material: Polyamide PA, self-extinguishing
- Rated insulation voltage: 300 V AC (According to EN 50178)
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA nC IIC T4 Gc X
- UL, USA / Canada: UL/C-UL listed UL 508
- GL: GL EMC 1 C
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 30
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm
- Connection method: Screw connection
- Control pulse length: min. 50 ms
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
- Noise emission: EN 61000-6-4
- Flammability rating according to UL 94: V0
- Low Voltage Directive: Conformance with LV directive 2006/95/EC
- eCl@ss 4.0: 27371103
- eCl@ss 4.1: 27371103
- eCl@ss 5.0: 27371701
- eCl@ss 5.1: 27371701
- eCl@ss 6.0: 27371790
- eCl@ss 7.0: 27371790
- eCl@ss 8.0: 27371605
- eCl@ss 9.0: 27371605
- ETIM 2.0: EC001439
- ETIM 3.0: EC001439
- ETIM 4.0: EC001439
- ETIM 5.0: EC001439
- UNSPSC 6.01: 30211920
- UNSPSC 7.0901: 39121519
- UNSPSC 11: 39121519
- UNSPSC 12.01: 39121519
- UNSPSC 13.2: 39121519
