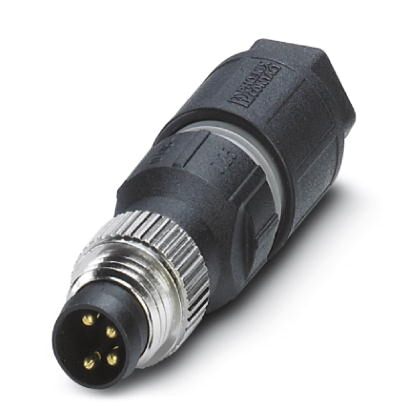

Phoenix Contact 1441037 Sensor/Actuator Connector
The connector is a universal 4-position straight plug with an M8 A-coded design, featuring an insulation displacement connection for easy wiring. The knurl is made of nickel-plated brass, suitable for external cable diameters ranging from 2.5 mm to 5 mm. It is ideal for sensor and actuator applications requiring reliable electrical connections. Designed for use in industrial environments, it offers protection class IP65 for durability and operates within temperature ranges from -25°C to 80°C. Recognized by UL and cUL, this connector ensures safe and efficient field installation in automation systems.
Phoenix Contact 1441037 Sensor/Actuator Connector Specifications:
- External cable diameter: 2.5 mm ... 5 mm +0.2 mm
- Degree of protection: IP65
- Ambient temperature: -25°C to 80°C
- Material: Nickel-plated brass (knurl)
- Number of positions: 4
- Standards and Regulations: UL Recognized, cUL Recognized
- Connection type: Insulation displacement connection
- Connector type: M8 straight plug, 4-pin, A-coded
- Cable compatibility: 24-20 AWG (mm?/AWG/kcmil)
- Approvals: UL, cUL, EAC
- Dimensions: External diameter 2.5 mm to 5 mm, Knurl material: Zinc die-cast, nickel-plated
Buy the Buy Phoenix Contact Sensor/Actuator Connector Part Number 1441037 Online
Secure your automation projects with the Phoenix Contact sensor/actuator connector designed for quick installation and reliable connections. Its IP65 rating ensures protection against dust and water, making it suitable for harsh industrial environments. The insulation displacement connection allows for fast wiring without stripping. Compatible with external cable diameters from 2.5 mm to 5 mm, it features UL and cUL recognition for safety compliance. Perfect for sensor and actuator applications, this connector simplifies installation and guarantees long-lasting reliable performance in demanding field conditions.
Order your Phoenix Contact SeriesSACC-M 8MS-4QO-0,5-M connector today and ensure reliable, quick-term sensor and actuator connections in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact 1441037?
You can click on the BUY or RFQ button to purchase 1441037 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1441037?
You can download the 1441037 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1441037?
Phoenix Contact
