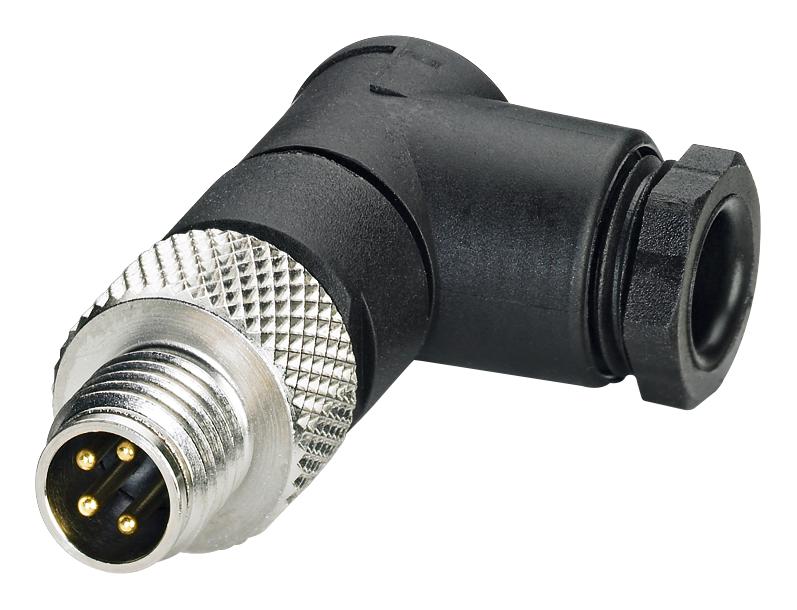

Phoenix Contact 1554209 M8 Sensor Connector
The SACC-M 8MR-4CON-M is a 4-position angled M8 connector with A-coded solder connection suitable for outdoor and industrial environments. Made of nickel-plated brass knurls for durability, it features a sealing NBR material, and is rated for up to 4A at 30V with an IP67 protection rating for reliable, safe use in harsh conditions. It offers robust insulation resistance > 100 MQ and can withstand over 100 insertion cycles, ensuring long-term, flexible connectivity for sensor and actuator applications.
Phoenix Contact 1554209 M8 Sensor Connector Specifications:
- External cable diameter: 3.5mm ... 5mm
- Stripping length of the sheath: 12mm
- Stripping length of the individual wire: 3mm
- Ambient temperature: -40°C to 85°C
- Degree of protection: IP67
- Rated current at 40°C: 4A
- Rated voltage: 30V
- Number of positions: 4
- Insulation resistance: > 100 MQ
- Conductor cross section: 0.08 mm² ... 0.34 mm²
- Conductor cross section AWG: 28 ... 22
- Assembly torque: 0.2 Nm
- Contact material: CuZn
- Contact surface: Au
- Material of grip body: PBT
- Knurl material: Nickel-plated brass
- Sealing material: NBR
- Standards: IEC 61076-2-104, UL HB flammability rating
Buy the Buy Phoenix Contact SACC-M 8MR-4CON-M Part Number 1554209 Online
Purchase the Phoenix Contact M8 Sensor Connector online today and experience top-grade durability, IP67 protection, and seamless solder connection for industrial sensor and actuator applications. Its nickel-plated brass knurls ensure a secure grip, while the sealing NBR material protects against harsh environmental conditions. Rated for 4A at 30V, this connector provides long-lasting, reliable connectivity. Ideal for installation in challenging environments, it supports over 100 insertion cycles, making it a perfect choice for industrial automation and control systems.
Get Phoenix Contact SACC-M 8MR-4CON-M today—designed for reliable, durable industrial connections in sensor and actuator systems.
