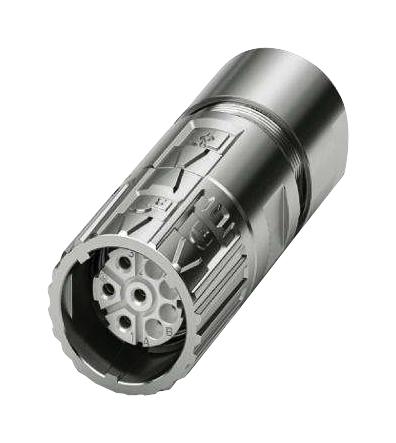

Phoenix Contact 1628791 Industrial Power and Signal Connector
The M23 connector is a shielded, straight power and signal connector designed for industrial automation and power applications. It features the ONECLICK fast locking system for quick, reliable connections, a robust housing made of GD-Zn with IP66 protection, and supports a wide range of cable diameters from 7.5mm to 17mm. Suitable for harsh environments with a temperature range of -40°C to +125°C, it offers high current capacity of 30A per power contact and 9A per signal contact, ensuring optimal performance in demanding industrial settings.
Phoenix Contact 1628791 Industrial Power and Signal Connector Specifications:
- Housing Material: GD-Zn
- Type of Locking: ONECLICK fast locking system
- Degree of Protection: IP66
- Cable Diameter Range: 7.5 mm ... 17 mm (Universal gasket)
- Temperature Range: -40 °C ... 125 °C
- Number of Positions: 8
- Power Contacts Diameter: 2 mm, Max Cross Section: 4 mm², Nominal Current: 30A at 25°C, Nominal Voltage: 630 V
- Signal Contacts Diameter: 1 mm, Max Cross Section: 1 mm², Nominal Current: 9A at 25°C, Nominal Voltage: 250 V
- Housing Material: GD-Zn
- Environmental Compliance: China RoHS
- Installation Height: 2000 m
- Thread Type: M23
Buy the Phoenix Contact 1628791 – Reliable Power and Signal Connection for Industrial Applications
Order the Phoenix Contact 1628791 M23 connector online today to ensure your industrial automation systems are fitted with durable, high-performance, and easy-to-install connections. Featuring the innovative ONECLICK fast locking system, built-in vibration resistance, and IP66 protection, this shielded connector delivers maximum reliability even in harsh environments. Compatible with cable diameters from 7.5mm to 17mm, it supports high current and voltage ratings, making it ideal for power distribution and signal transmission in demanding industrial settings. Shop now for quick, secure, and hassle-free online purchasing experience.
Buy Phoenix Contact 1628791 now and experience fast, secure, and reliable connections suitable for demanding industrial automation and power systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 1628791?
You can click on the BUY or RFQ button to purchase 1628791 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1628791?
You can download the 1628791 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1628791?
Phoenix Contact
