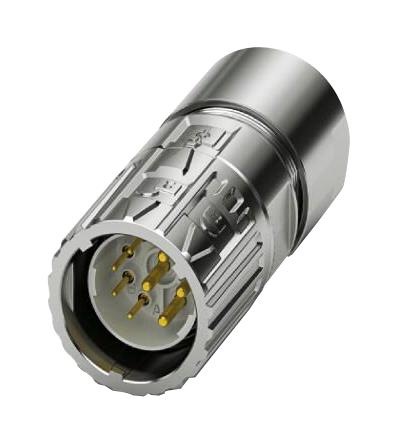

Phoenix Contact 1628867 Industrial Power Connector
The M23-7EP198A80DNS cable connector is a rugged, shielded, straight industrial connector suited for power and signal applications in harsh environments. Featuring an innovative ONECLICK fast locking system, it ensures quick, secure connections with vibration resistance, ideal for industrial automation, machinery, and heavy-duty power projects. The connector supports a broad cable diameter range from 5.5 mm to 15 mm, with IP66 protection, and is rated for 30A current per power contact at 25°C. Its robust design, with versatile insulator and housing materials, makes it an excellent choice for reliable power and signal transmission in demanding conditions.
Phoenix Contact 1628867 Industrial Power Connector Specifications:
- Number of positions: 8
- Cable diameter range: 5.5 mm ... 15 mm
- Contact diameter of power contacts: 2 mm
- Nominal current per power contact at 25°C: 30A
- Nominal voltage power contact: 630 V
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Housing material: GD-Zn
- Type of locking: ONECLICK fast locking system
- Protection class: IP66 when plugged in
- Operating temperature: -40°C to 125°C
- Insulating body material: PA6.6
- Sealing material: FKM
- Thread type: M23
- Application: Power and signal transmission in industrial environments
Buy the Phoenix Contact Series ED Power Connector: 1628867
Purchase the Phoenix Contact M23-7EP198A80DNS industrial power connector online today. Designed for quick, secure connections with the innovative ONECLICK locking system, it offers IP66 protection, supporting up to 30A current, and suitable for harsh environments. Its broad cable diameter range from 5.5 mm to 15 mm ensures versatile application in automation, machinery, and heavy-duty power setups. Made with high-quality materials like PA6.6 insulators and FKM seals, providing durability and reliable performance for demanding industrial projects.
Order your Phoenix Contact Series ED M23 Power Connector today and ensure reliable, quick-connect power solutions for demanding industrial applications.
Frequently Asked Questions
Where can I buy Phoenix Contact 1628867?
You can click on the BUY or RFQ button to purchase 1628867 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1628867?
You can download the 1628867 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1628867?
Phoenix Contact
