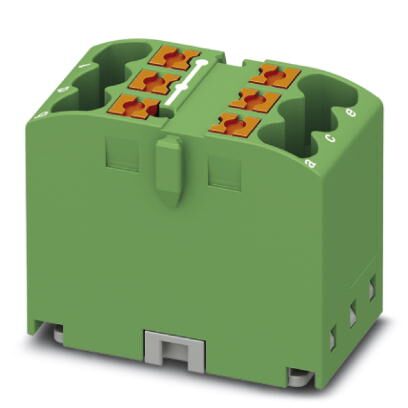

Phoenix Contact 3273272 Distribution Block
The PHOENIX CONTACT PTFIX 6X2,5 GN distribution block is designed for efficient and space-saving power distribution. It utilizes Push-in direct connection technology for tool-free conductor connection, reducing installation time. The block's design allows for clear wiring through color variants and offers versatile mounting options including DIN rail, direct, or adhesive mounting. It is ideal for applications requiring reliable and rapid power distribution in industrial environments, contributing to overall efficiency and reduced downtime.
Phoenix Contact 3273272 Distribution Block Specifications:
- Number of connections: 6
- Cross section: 0.14-4 mm²
- AWG: 26-12
- Width: 15.6 mm
- Height: 21.2 mm
- Color: green
- Mounting type: for snapping onto a DIN rail adapter
- Nominal voltage: 500 V
- Nominal current: 24 A
- Connection method: Pushin connection
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Maximum power dissipation: 0.77 W
- Maximum load current: 24 A
- Shock protection test specification: DIN EN 50274
- Fire protection for rail vehicles (DIN EN 45545-2): HL 1 - HL 3
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
