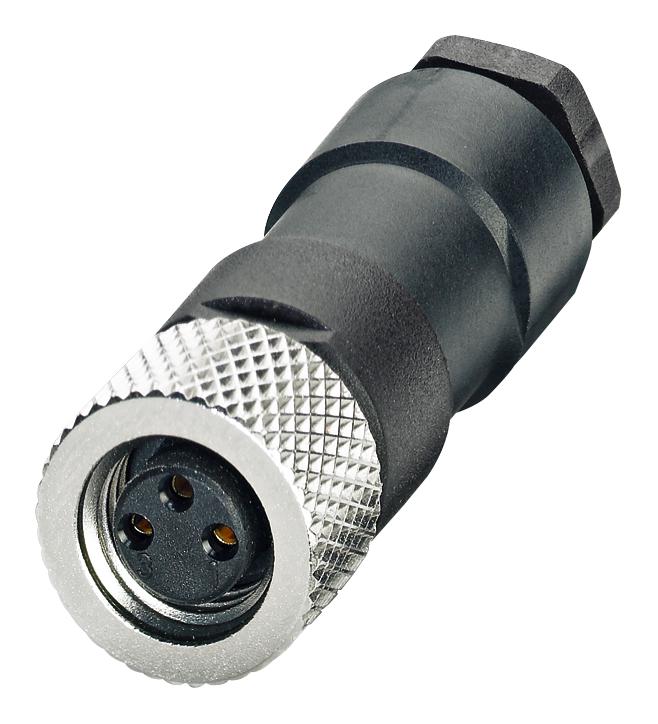

Phoenix Contact 1681185 4-Position M8 Socket Connector
The PHOENIX CONTACT SACC-M 8FS-4CON-M connector provides a secure and reliable connection for power and signal transmission in various industrial applications. Its M8 A-coded design ensures compatibility with standard M8 connectors, while the nickel-plated brass knurl offers excellent corrosion resistance. The connector's robust construction and IP67 degree of protection make it suitable for harsh environments, and its flexible design allows for on-site assembly, reducing installation time and costs. It is commonly used in automation systems, sensors, and actuators where a compact and reliable connection is required.
Phoenix Contact 1681185 4-Position M8 Socket Connector Specifications:
- External cable diameter: 3.5 mm ... 5 mm
- Stripping length of the sheath: 12 mm
- Stripping length of the individual wire: 3 mm
- Ambient temperature (operation): -40 °C ... 85 °C
- Degree of protection: IP67
- Rated current at 40°C: 4 A
- Rated voltage: 30 V
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M8 connector IEC 61076-2-104
- Overvoltage category: II
- Degree of pollution: 3
- Connection method: Solder connection
- Conductor cross section: 0.08 mm² ... 0.25 mm²
- Conductor cross section AWG: 28 ... 22
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.2 Nm (M8 knurl)
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Au
- Contact carrier material: PA
- Material of grip body: PBT
- Material, knurls: Nickel-plated brass
- Sealing material: NBR
- Packing unit: 1 STK
- GTIN: 4017918157531
- Weight per Piece (excluding packing): 8.800 g
- Custom tariff number: 85366990
- Country of origin: Germany
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Standard designation: M8 connector
