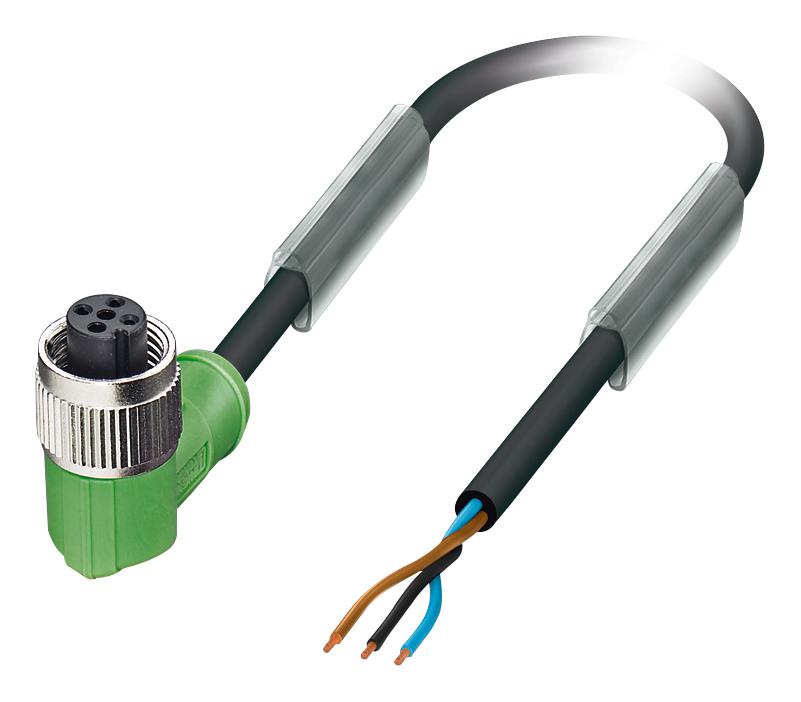

Phoenix Contact 1694509 Sensor/Actuator Cable
This sensor and actuator cable features a 3-position, halogen-free PUR black-gray outer sheath, 1.5 meters long, with an angled M12 connector. Suitable for industrial automation, it provides IP65/IP67/IP68 protection, rated for 4A current and 250V, with > 100 MQ insulation resistance. Compliant with IEC 61076-2-101 standards, it withstands over 100 insertion cycles, UV, oil, acids, and solvents, making it ideal for demanding environments. Rugged and flexible, it ensures reliable signal transmission in automation and sensor applications.
Phoenix Contact 1694509 Sensor/Actuator Cable Specifications:
- Number of positions: 3
- Cable length: 1.5m
- Outer sheath material: PUR, black-gray RAL 7021
- Conductor cross section: 3x 0.34 mm² (AWG 22)
- Core diameter: 1.27 mm
- Insulation resistance: > 100 MQ
- Rated current: 4A at 40°C
- Rated voltage: 250V
- Degrees of protection: IP65/IP67/IP68
- Bending radius: 44 mm
- Number of bending cycles: 4,000,000
- Operating temperature: -40°C to 80°C (fixed), -25°C to 80°C (flexible)
- UL and cUL listed, EAC certified
- Cable resistance: max 58 Q/km at 20°C
- Test voltage: 3000V
- Flammability rating: UL 94 HB
- Resistant to oils, acids, alkaline solutions, and solvents
- Highly resistant to microbe and hydrolysis
Buy the Buy Phoenix Contact Sensor/Actuator Cable SAC-3P- 1,5-PUR/M12FR Online
Purchase the Phoenix Contact Sensor/Actuator Cable SAC-3P- 1,5-PUR/M12FR online today to ensure your automation projects benefit from high-quality, flexible, and durable cable solutions. This 1.5-meter halogen-free PUR cable is designed for industrial environments, offering IP67 protection, resistance to oils, acids, and UV, and rated for 4A and 250V. Its robust construction withstands harsh conditions, provides over 4 million bending cycles, and complies with IEC standards. Ideal for sensor or actuator connections requiring reliable, long-lasting performance.
Get Phoenix Contact SAC-3P- 1,5-PUR/M12FR today—built for industrial automation, offering reliable signal transmission and environmental resistance.
Frequently Asked Questions
Where can I buy Phoenix Contact 1694509?
You can click on the BUY or RFQ button to purchase 1694509 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1694509?
You can download the 1694509 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1694509?
Phoenix Contact
