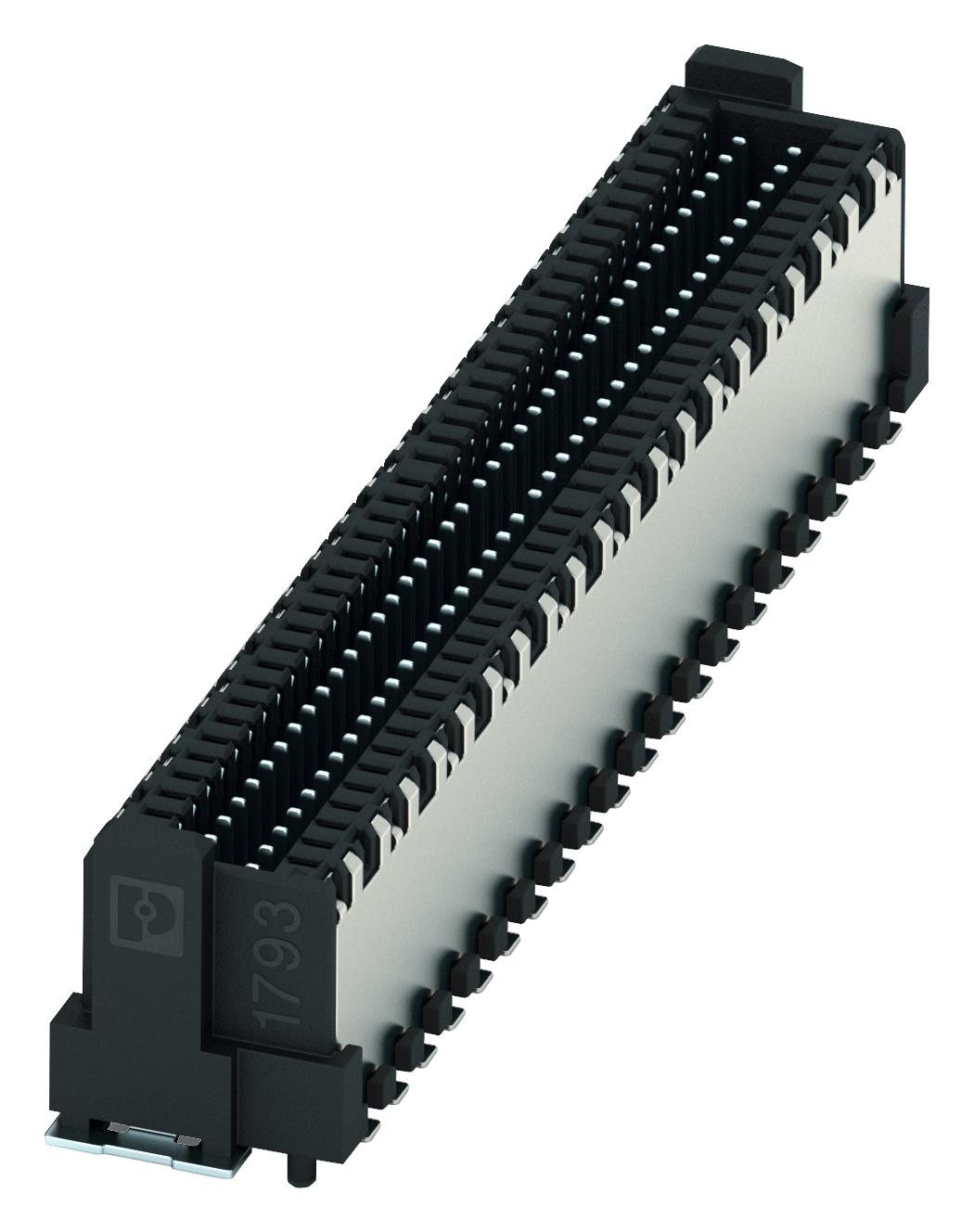

Phoenix Contact FP0880MVSH115 High-Speed PCB Connector
The product is a high-density, high-speed board-to-board connector designed with ScaleX technology, offering hermaphroditic double contacts for robust, vibration-proof, and EMI-shielded connections. It supports data rates up to 16 Gbps, ideal for automation and industrial PCB applications, with stack heights from 6 to 12 mm. Its advanced design ensures reliable mating, tolerance compensation, process-reliable soldering, and excellent electromagnetic compatibility, making it suitable for compact, high-performance electronic devices.
Phoenix Contact FP0880MVSH115 High-Speed PCB Connector Specifications:
- Pitch: 0.8 mm
- Number of positions: 12, 20, 32, 52, 80
- Data transmission: Up to 16 Gbps
- Nominal current: 1.4 A at 20°C (52-pos)
- Insulation resistance: Min. 5 GΩ
- Contact resistance: Max. 20 mΩ
- Test voltage: 500 VAC
- Air clearance and creepage: Min. 0.25 mm
- Operating temperature: -55°C to +125°C
- Insertion/Withdrawal force: <12 N per contact
- Durability: 500 insertion cycles
- Standards: UL 1977, IEC 60512
- Surface: Ni; Au; Sn
- Material: LCP (insulation), Cu alloy (metal parts)
Buy the Phoenix Contact FP0880MVSH115 – Reliable High-Speed Shielded PCB Connector for Industrial Applications
Purchase the Phoenix Contact FP0880MVSH115 high-speed PCB connector online today and benefit from durable, shielded, and high-performance connectivity solutions designed for automation and industrial electronics, supporting up to 16 Gbps data transfer, with reliable mating, tolerance compensation, and process-optimized soldering for your demanding applications.
Order your Phoenix Contact FP0880MVSH115 high-speed shielded PCB connector today and enhance your industrial device connectivity with robust, EMI-resistant solutions.
