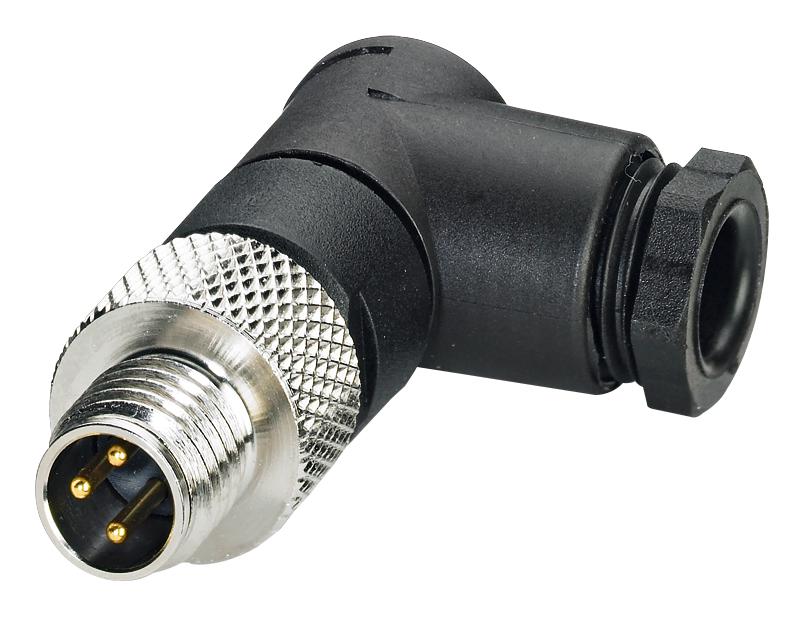

Phoenix Contact 1699902 M8 Sensor Connector
The SACC-M 8MR-3CON-M is a 3-position angled M8 connector with A-coding, designed for reliable solder connections. Made from nickeled brass with a sealing material of NBR, it is suitable for environments requiring IP67 protection, operating from -40°C to 85°C. This connector supports conductor cross sections from 0.08 mm² to 0.34 mm² (AWG 28 to 22), rated for 4A and 60V. Its rugged construction and adherence to IEC 61076-2-104 make it ideal for industrial automation and sensor applications, offering up to 100 insertion cycles.
Phoenix Contact 1699902 M8 Sensor Connector Specifications:
- Dimensions: Suitable for external cable diameter 3.5mm to 5mm
- Material: Nickel-plated brass, PA contact carriers, PBT grip body, NBR sealing material
- Electrical: Rated current 4A, Rated voltage 60V, Insulation resistance > 100 MQ
- Environmental: Operating temperature -40°C to 85°C, Degree of protection IP67, Flammability UL 94 HB
- Connection: Solder connection, Torque 0.2 Nm, Up to 100 insertion cycles
- Standards: IEC 61076-2-104, IP67 rated, Overvoltage category 3, Pollution degree 3
- Cable Compatibility: External cable diameter 3.5 mm to 5 mm, Stripping length of sheath 12 mm, of wire 3 mm
- Conductor: Cross section 0.08 mm² to 0.34 mm², AWG 28 to 22
- Compliance: UL Recognized, cUL Recognized, EAC certified
Buy the Phoenix Contact Series ED M8 Connector: 1699902
Purchase the Phoenix Contact ED gen M8 Sensor Connector 1699902 online today for secure and reliable industrial sensor connections. Featuring a 3-position angled design, solder connection, and IP67 rating, this connector is built to withstand harsh environments from -40°C to 85°C. Its robust construction includes nickel-plated brass knurls and NBR sealing material, ensuring durability and corrosion resistance. Rated at 4A and 60V, it supports conductor sizes from 0.08 mm² to 0.34 mm², making it perfect for automation systems requiring high-quality connectivity and long-term performance.
Get Phoenix Contact ED gen 1699902 today—designed for secure sensor connections and industrial automation with IP67 protection.
Frequently Asked Questions
Where can I buy Phoenix Contact 1699902?
You can click on the BUY or RFQ button to purchase 1699902 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 1699902?
You can download the 1699902 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 1699902?
Phoenix Contact
