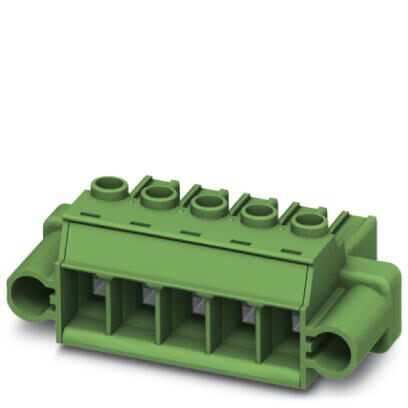

Phoenix Contact 1777833 PCB Connector
The Phoenix Contact PC 5/ 2-STF1-7,62 is a robust and versatile printed-circuit board connector designed for demanding industrial environments. Its well-known connection principle allows for worldwide use, while the low temperature rise and maximum contact force contribute to reliable performance. The integrated double steel spring provides added safety against temperature and power fluctuations. With UL approval and a screwable flange for superior mechanical stability, this connector is ideal for applications requiring secure and long-lasting connections. It supports a wide range of conductor cross-sections and offers excellent current-carrying capacity.
Phoenix Contact 1777833 PCB Connector Specifications:
- Nominal current: 41 A
- Rated voltage (III/2): 1000 V
- Number of positions: 2
- Pitch: 7.62 mm
- Connection method: Screw connection with tension sleeve
- Color: green
- Contact surface: Tin
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece (excluding packing): 12.8 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Length: 35.5 mm
- Height: 19.7 mm
- Dimension a: 7.62 mm
- Range of articles: PC 5/..-STF1
- Insulating material group: I
- Rated surge voltage (III/3): 8 kV
- Rated surge voltage (III/2): 8 kV
- Rated surge voltage (II/2): 6 kV
- Rated voltage (III/3): 1000 V
- Rated voltage (II/2): 1000 V
- Nominal cross section: 6 mm²
- Maximum load current: 41 A
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Internal cylindrical gage: A4
- Stripping length: 10 mm
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.8 Nm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 10 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 6 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 6 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 2.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 4 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.25 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
- Minimum AWG according to UL/CUL: 24
- Maximum AWG according to UL/CUL: 8
- eCl@ss 4.0: 27141109
- eCl@ss 4.1: 27141109
- eCl@ss 5.0: 27141190
- eCl@ss 5.1: 27141190
- eCl@ss 6.0: 27261101
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440309
- eCl@ss 9.0: 27440309
- ETIM 3.0: EC001121
- ETIM 4.0: EC002643
- ETIM 5.0: EC002638
- UNSPSC 6.01: 30211801
- UNSPSC 7.0901: 39121432
- UNSPSC 11: 39121432
- UNSPSC 12.01: 39121432
- UNSPSC 13.2: 39121432
