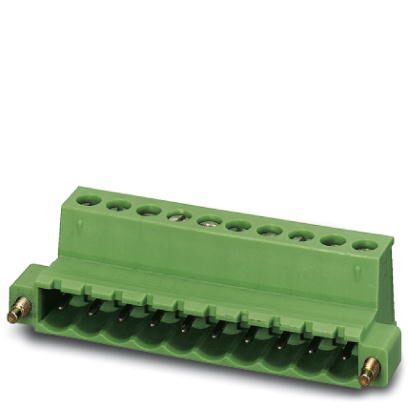

Phoenix Contact 1825420 PCB Connector
The PHOENIX CONTACT 1825420 is a robust PCB connector from the IC 2,5/..-STF product range. This connector offers a 5.08mm pitch and features 13 positions, making it suitable for a variety of applications. It utilizes a screw connection with a tension sleeve, ensuring a secure and reliable connection. The connector's design allows for easy PCB replacement and provides superior mechanical stability thanks to the screw flange mounting. It is compatible with the MSTB 2,5 range and offers low temperature rise due to maximum contact force. This connector is ideal for applications requiring a touch-proof device output or free-hanging cable connections.
Phoenix Contact 1825420 PCB Connector Specifications:
- Nominal cross section: 2.5 mm²
- Color: green
- Nominal current: 12 A
- Rated voltage (III/2): 320 V
- Contact surface: Tin
- Type of contact: Male connector
- Number of potentials: 13
- Number of rows: 1
- Number of positions per row: 13
- Number of connections: 13
- Pitch: 5.08 mm
- Connection method: Screw connection with tension sleeve
- Screw head form: L Slotted
- Conductor/PCB connection direction: 0 °
- Locking clip: without locking clip
- Plug-in system: CLASSIC COMBICON
- Locking: Screw locking
- Mounting: Screw flange
- Type of packaging: packed in cardboard
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- GTIN: 4017918049584
- Weight per Piece (excluding packing): 23.970 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Conductor cross section solid: 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG / kcmil: 24 ... 12
- Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 2.5 mm²
- Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 2.5 mm²
- 2 conductors with same cross section, solid: 0.2 mm² ... 1 mm²
- 2 conductors with same cross section, flexible: 0.2 mm² ... 1.5 mm²
- 2 conductors with same cross section, flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm²
- 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve: 0.5 mm² ... 1.5 mm²
- Cylindrical gauge a x b / diameter: 2.8 mm x 2.0 mm / 2.4 mm
- Stripping length: 7 mm
- Torque: 0.5 Nm ... 0.6 Nm
- Housing color: green (6021)
- Insulating material: PA
- Insulating material group: I
- CTI according to IEC 60112: 600
- Flammability rating according to UL 94: V0
- Glow wire flammability index GWFI according to EN 60695-2-12: 850
- Glow wire ignition temperature GWIT according to EN 60695-2-13: 775
- Temperature for the ball pressure test according to EN 60695-10-2: 125 °C
- Minimum clearance - inhomogeneous field (III/3): 3 mm
- Minimum clearance - inhomogeneous field (III/2): 3 mm
- Minimum clearance - inhomogeneous field (II/2): 3 mm
- Minimum creepage distance value (III/3): 3.2 mm
- Minimum creepage distance value (III/2): 3 mm
- Minimum creepage distance value (II/2): 3 mm
