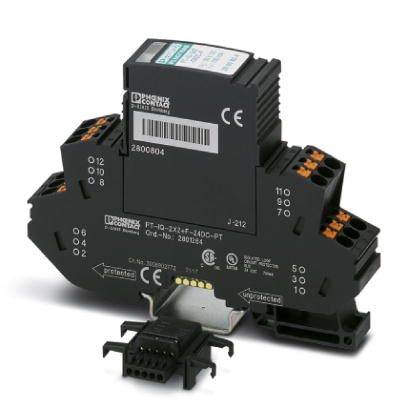

Phoenix Contact 2801264 Surge Protector
Surge protection device comprising a protective plug and base element, equipped with an integrated multi-stage status indicator. Suitable for two 2-wire floating signal circuits with indirect grounding via a gas-filled surge arrester. HART-compatible design ensures reliable operation in industrial signal protection applications.
Phoenix Contact 2801264 Surge Protector Specifications:
- Dimensions: Height 109.3 mm, Depth 77.5 mm (including DIN rail 7.5 mm)
- Housing Material: PA 6.6
- Mounting Type: DIN rail 35 mm
- Operational Temperature: -40°C to 70°C
- Storage/Transport Temperature: -40°C to 85°C
- Degree of Protection: IP20
- Rated Current: 700 mA at 50°C
- Standards/Regulations: IEC 61643-21, IEC 61508
- Connection: Flexible conductor cross section 0.2 mm² to 2.5 mm², AWG 24 to 12
- Material: Gas-filled surge arrester, multi-stage status indicator
- Environmental: Suitable for altitudes below 4000 meters AMSL
Buy the Buy Phoenix Contact Surge Protection Device Part Number 2801264 Online
Secure your industrial systems with the Phoenix Contact Surge Protection Device designed for two 2-wire circuits, featuring a gas-filled arrester, multi-stage status indicator, and DIN rail mounting. Its rugged build and compliance with IEC standards ensure dependable performance in harsh environments. Quick installation and HART compatibility make this device ideal for protecting sensitive electronic equipment in automation, control systems, and industrial signal circuits. Purchase online now for fast, reliable delivery and enhanced system safety.
Order your Phoenix Contact Surge Protection Device 2801264 today and ensure reliable industrial signal protection with robust DIN rail mounting and multi-stage status indicator.
