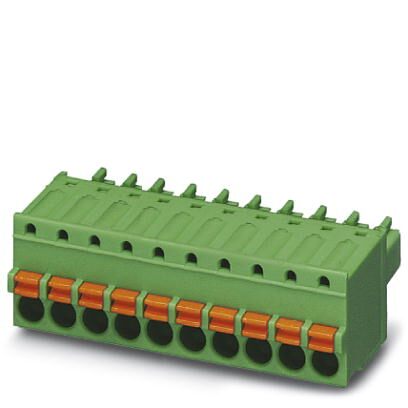

Phoenix Contact 1851122 PCB Connector 10 Position
The PHOENIX CONTACT FK-MCP 1,5/10-ST-3,81 connector is a versatile solution for connecting components to printed circuit boards. Its push-in spring connection simplifies installation, eliminating the need for tools. The color-coded actuation lever provides intuitive operation, while the integrated test option allows for quick and convenient testing. Designed for a nominal current of 8A and a rated voltage of 160V, this connector is suitable for a wide range of industrial applications, including power supplies, automation systems, and control panels. Its robust construction and reliable connection ensure long-term stability and performance.
Phoenix Contact 1851122 PCB Connector 10 Position Specifications:
- Packing unit: 1 STK
- GTIN: 4017918109677
- Weight per Piece (excluding packing): 9.620 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Length l: 21 mm
- Width w: 38.89 mm
- Height h: 12.4 mm
- Pitch: 3.81 mm
- Dimension a: 34.29 mm
- Range of articles: FK-MCP 1,5/..-ST
- Type of contact: Female connector
- Number of positions: 10
- Connection method: Push-in spring connection
- Insulating material group: I
- Rated surge voltage III/3: 2.5 kV
- Rated surge voltage III/2: 2.5 kV
- Rated surge voltage II/2: 2.5 kV
- Rated voltage III/3: 160 V
- Rated voltage III/2: 160 V
- Rated voltage II/2: 320 V
- Connection in acc. with standard: EN-VDE
- Nominal current IN: 8 A
- Nominal cross section: 1.5 mm²
- Maximum load current: 8 A (with 1.5 mm² conductor cross section)
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Internal cylindrical gage: A1
- Stripping length: 9 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 0.75 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 16
- Minimum AWG according to UL/CUL: 28
- Maximum AWG according to UL/CUL: 16
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Standards and Regulations: EN-VDE
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27260701
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440309
- eCl@ss 9.0: 27440309
- ETIM 3.0: EC001121
- ETIM 4.0: EC002638
- ETIM 5.0: EC002638
- ETIM 6.0: EC002638
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
- CSA: http://www.csagroup.org/services-industries/product-listing/13631
- VDE Gutachten mit Fertigungsüberwachung: http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-Search.aspx 40011723
- IECEE CB Scheme: http://www.iecee.org/DE1-59621-B1B2
- CCA: CCA/ DE1 34219
- cULus Recognized: http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19920306
- EAC: B.01742
