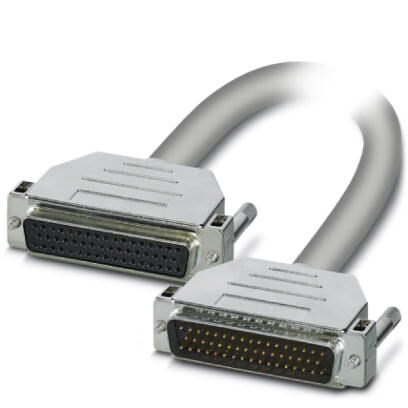

Phoenix Contact 2302308 D-Sub 50 Connector Cable
The Phoenix Contact 2302308 is a 3-meter shielded cable assembly designed for robust data transmission in industrial environments. It incorporates D-SUB 50 connectors on both ends, providing a reliable connection for various applications, including automation systems and data acquisition. The cable's shielding minimizes electromagnetic interference, ensuring signal integrity. It is rated for a nominal voltage of 125V AC/DC and a current carrying capacity of 2A per path, making it suitable for a wide range of power and signal transmission needs. The cable is compliant with CUL standards and is designed to withstand harsh operating conditions, contributing to the overall reliability of industrial systems.
Phoenix Contact 2302308 D-Sub 50 Connector Cable Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 896.0 g
- Custom tariff number: 85444290
- Country of origin: Hungary
- Nominal voltage UN: 125 V AC/DC
- Max. current carrying capacity per path: 2 A
- Max. conductor resistance: ≤ 0.09 Ω/m
- Length of cable: 3 m
- Single wire, cross section: 0.25 mm²
- Single wire, cross section [AWG]: 24
- External diameter: 13.5 mm
- Shielding: yes
- Shielding type: Tinned copper-braided shield, approx. 85% covering
- Insertion/withdrawal cycles: > 200
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Flame resistance: IEC 60332-1, DIN VDE 0482 Part 332-1
- Connection method (module side): D-SUB pin strip
- Number of connections (module side): 1
- Number of positions (module side): 50
- Connection method (controller side): D-SUB socket strip
- Number of connections (controller side): 1
- Number of positions (controller side): 50
- Supported controller: universal
- Connection in acc. with standard: CUL
- eCl@ss 4.0: 27060306
- eCl@ss 4.1: 27060306
- eCl@ss 5.0: 27061801
- eCl@ss 5.1: 27061801
- eCl@ss 6.0: 27061801
- eCl@ss 7.0: 27061801
- eCl@ss 8.0: 27249205
- ETIM 2.0: EC000237
- ETIM 3.0: EC000237
- ETIM 4.0: EC000237
- ETIM 5.0: EC000237
- UNSPSC 6.01: 26121620
- UNSPSC 7.0901: 26121620
- UNSPSC 11: 26121620
- UNSPSC 12.01: 26121620
- UNSPSC 13.2: 26121620
- UL Recognized: Yes
- cUL Recognized: Yes
- CSA: Yes
- EAC: Yes
- cULus Recognized: Yes
