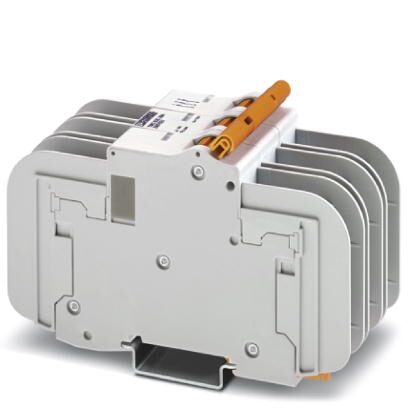

Phoenix Contact 2907684 Thermomagnetic Device Circuit Breaker
The Phoenix Contact TMC 83D 10A thermomagnetic device circuit breaker is a crucial component for electrical distribution systems, offering reliable overcurrent protection in industrial environments. Designed for DIN rail mounting, it features a three-position design and a rated current of 10A, making it suitable for a wide range of applications. The device's robust construction and adherence to UL 489 and IEC 60947-2 standards ensure dependable performance and safety. It is commonly used in control cabinets, machinery, and other industrial equipment to protect circuits from damage caused by overloads and short circuits. The device's compact size and ease of installation contribute to efficient system design and maintenance.
Phoenix Contact 2907684 Thermomagnetic Device Circuit Breaker Specifications:
- Mounting type: DIN rail
- Color: gray
- Number of positions: 3
- Operating voltage: 240 V AC (277/480Y, 240D)
- Rated current IN: 10 A
- Rated short-circuit switching capacity Icn: 10 kA (IC)
- Height: 116 mm
- Width: 52.9 mm
- Depth: 65.7 mm
- Ambient temperature (operation): -35 °C ... 70 °C
- Conductor cross section solid min.: 1 mm²
- Conductor cross section solid max.: 35 mm²
- Conductor cross section flexible min.: 1 mm²
- Conductor cross section flexible max.: 35 mm²
- Conductor cross section AWG min.: 18
- Conductor cross section AWG max.: 2
- Connection method: Screw
- Tightening torque max: 2 Nm
- Standards and Regulations: UL 489 IEC 60947-2
Buy the 2907684 PHOENIX CONTACT Thermomagnetic Device Circuit Breaker | myMectronic
Purchase the Phoenix Contact 2907684 Thermomagnetic Device Circuit Breaker securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 2907684?
You can click on the BUY or RFQ button to purchase 2907684 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2907684?
You can download the 2907684 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2907684?
Phoenix Contact
