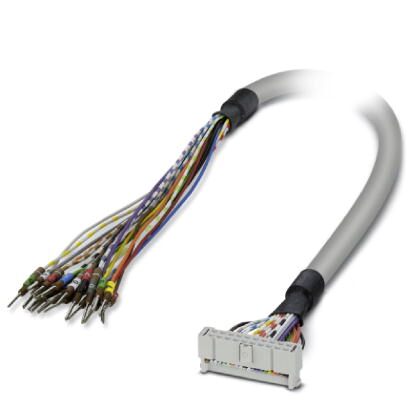

Phoenix Contact 2305305 20-Position Cable Assembly
This PHOENIX CONTACT cable assembly provides a pre-wired solution for connecting devices in industrial automation and control systems. The assembly includes a 20-position socket strip with an open end, allowing for flexible integration into various setups. The ferrules ensure secure and reliable connections, while the 1-meter cable length offers sufficient reach for many applications. It is WEEE/RoHS compliant, ensuring environmental responsibility. This cable assembly simplifies installation and reduces wiring time, contributing to increased efficiency and reduced costs.
Phoenix Contact 2305305 20-Position Cable Assembly Specifications:
- Nominal Voltage UN: < 50 V AC / 60 V DC
- Max Current Carrying Capacity Per Path: 1 A
- Max Conductor Resistance: 0.16 Ω/m
- Ambient Temperature (Operation): -20 °C ... 50 °C
- Ambient Temperature (Storage/Transport): -20 °C ... 70 °C
- Number of Positions: 20
- Number of Positions, Control Side: 20
- Number of Connectors, Control Side: 0
- Number of Positions, Module Side: 20
- Number of Connectors, Module Side: 1
- Fixed Cable Length: 1 m
- Single Wire Cross Section: 0.14 mm²
- AWG: 26
- Conductor Construction (Number of Litz Wires): 7
- Single Wire Material: Cu tin-plated
- Test Voltage: 0.8 kV
- External Diameter: 7.6 mm
- Cable Preassembly: Insulation displacement, IEC 60352-4/DIN EN 60352-4
- Shielding: no
- Certifications Applied For: UL / CUL
