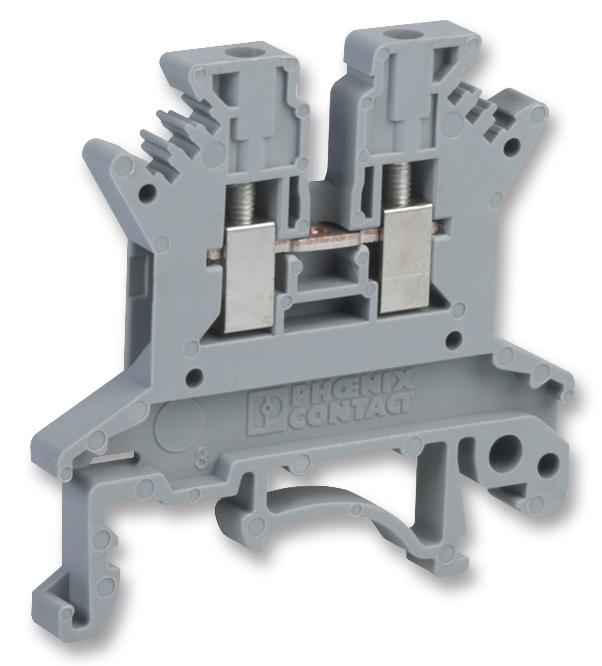

Phoenix Contact 3005837 Feed-Through Terminal Block
The part number 3005837 is a two-way, 17.5A grey DIN-rail mount feed-through terminal block with M2 screw connections. This universal screw terminal block features a PA insulator and an A1 internal cylindrical gauge. It is designed for practical applications in industrial settings and complies with safety standards, including UL94V-0 flammability. The terminal block requires a minimum tightening torque of 0.22 Nm, supports conductor cross sections from 0.14 mm² to 1.5 mm², and is suitable for screw and screwless wiring for reliable, secure connections in automation and control panels.
Phoenix Contact 3005837 Feed-Through Terminal Block Specifications:
- Nominal current: 17.5A
- Nominal voltage: 500V
- Connection method: Screw connection
- Conductor cross section: 0.14 mm² - 1.5 mm² (AWG 26 - 16)
- Width: 4.2 mm
- Height: NS 35/7,5 or NS 35/15 depending on configuration
- Material: PA insulator, galvanized steel DIN rail mounting
- Flammability rating: UL 94V-0
- Tightening torque: 0.22 Nm to 0.25 Nm
- Standards: IEC 60947-7-1, UL Recognized
- Rated surge voltage: 6 kV
- Temperature range: -60°C to +130°C
- Number of levels: 1
- Short circuit stability: Yes
- Compliance: EAC, UL, cUL, DNV GL, KRS, PRS
- Support for conductor stripping length: 7mm
- DIN rail compatibility: NS 32, NS 35/7.5, NS 35/15
- Environment: Suitable for industrial environments and rail vehicle applications
Buy the Buy Phoenix Contact Feed-Through Terminal Block Part Number 3005837 Online
Order the Phoenix Contact feed-through terminal block 3005837 online today to enhance your industrial automation setup. This versatile terminal offers a 17.5A current capacity, wide conductor compatibility from 0.14 mm² to 1.5 mm², and features a PA insulator for fire safety. Its universal design supports DIN rail mounting with compatibility for NS 32 and NS 35/7.5 or 15 rails. This terminal block ensures secure connections, easy wiring, and reliable performance in demanding environments, making it an ideal choice for electrical professionals seeking quality and durability.
Get Phoenix Contact 3005837 today—built for reliable connections in automation and control panels with excellent electrical stability and safety standards.
Frequently Asked Questions
Where can I buy Phoenix Contact 3005837?
You can click on the BUY or RFQ button to purchase 3005837 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3005837?
You can download the 3005837 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3005837?
Phoenix Contact
