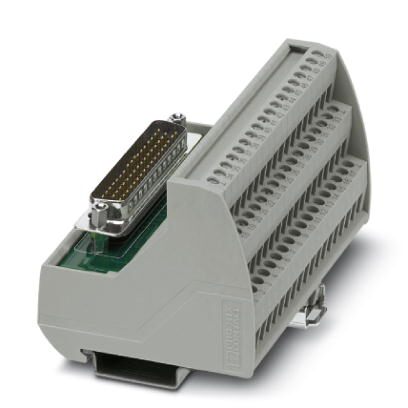

Phoenix Contact 2315159 Interface Module
This VARIOFACE interface module is engineered for flexible and reliable connectivity in industrial applications. Supporting a maximum voltage of 25 VAC or 60 VDC and current of 2A per branch, it offers field-level connections via M3 screw terminals and flat-ribbon cable connectors. At the controller level, it features a 50-position male D-Subminiature pin strip, ensuring secure and precise connections. Compact with dimensions of 98.2mm width, 69mm height, and 62mm depth, this module is ideal for space-constrained automation systems requiring robust interface solutions.
Phoenix Contact 2315159 Interface Module Specifications:
- Maximum Operating Voltage: 25 VAC or 60 VDC
- Maximum Current Per Branch: 2A
- Field Connection: M3 screw terminals, flat-ribbon cable connectors
- Controller Connection: 50-position male D-Subminiature pin strip
- Dimensions: 98.2mm (width) x 69mm (height) x 62mm (depth)
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Standards and Regulations: IEC 60664
- Certifications: UL Recognized, cUL, CSA, EAC
- Rated Voltage: 150 V (UL/cUL), 105 V (CSA)
Buy the Phoenix Contact Series VARIOFACE Interface Module: 2315159
Enhance your automation system with the Phoenix Contact VARIOFACE interface module. This compact device offers versatile connectivity options, supporting up to 25 VAC or 60 VDC at 2A per branch. Equipped with field-level M3 screw terminals and flat-ribbon cable connectors, and a 50-position D-Sub for controller connections, it ensures secure and reliable performance in space-restricted environments. Easy to install and compliant with industry standards, this module is ideal for robust industrial automation systems.
Get Phoenix Contact VARIOFACE interface module 2315159 today—designed for versatile, space-efficient industrial connectivity and reliable operation.
Frequently Asked Questions
Where can I buy Phoenix Contact 2315159?
You can click on the BUY or RFQ button to purchase 2315159 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2315159?
You can download the 2315159 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2315159?
Phoenix Contact
