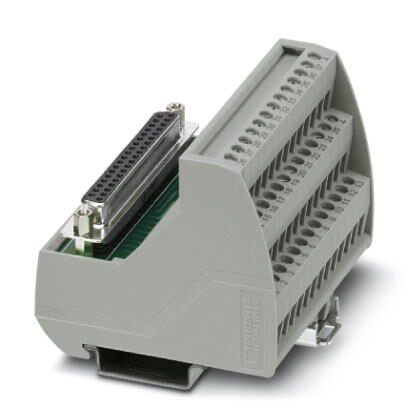

Phoenix Contact 2315191 Industrial Interface Module
The VARIOFACE interface module with part number 2315191 offers versatile connectivity solutions for control cabinets and automation systems. It supports a maximum operating voltage of 25 VAC and 60 VDC, with a maximum current of 2A per branch, ensuring reliable performance for industrial applications. The module features field-level wiring via M3 screw terminals and flat-ribbon cable connectors, facilitating easy installation and maintenance. At the controller level, it employs a 37-position female D-Subminiature socket strip. Compact and durable, its dimensions are approximately 72.7mm wide, 69mm high, and 62mm deep, making it suitable for space-constrained environments.
Phoenix Contact 2315191 Industrial Interface Module Specifications:
- Operating Voltage: 25 VAC, 60 VDC
- Maximum Current: 2A per branch
- Connection Type: M3 screw terminals, flat-ribbon cable connectors, female D-Sub socket
- Dimensions: Width 72.7mm, Height 69mm, Depth 62mm
- Ambient Temperature Range: -20°C to 50°C
- Mounting: Indoor, 2 mounting holes
- Pollution Degree: 2
- Surge Voltage Category: IEC 60664, DIN EN 50178
- Wire Compatibility: 0.2-4.0 mm² / 24-12 AWG
- Tightening Torque: 0.5-0.6 Nm
- Certifications: UL 508, IEC Standards
- Ingress Protection: No specific indication, suitable for indoor use
Buy the Buy PHOENIX CONTACT VARIOFACE Interface Module Part Number 2315191 Online
Discover the innovative PHOENIX CONTACT VARIOFACE interface module, designed for seamless control cabinet connections. Supporting up to 25 VAC and 60 VDC, with a maximum current of 2A per branch, it ensures robust performance in industrial automation. Its compact size and easy wiring with screw terminals and flat-ribbon cable connectors make installation straightforward. The module's durable build and compliance with industry standards make it an ideal choice for space-constrained control cabinets requiring reliable connectivity and easy maintenance. Purchase online now for fast delivery and expert support.
Buy PHOENIX CONTACT 2315191 now and experience unmatched reliability and performance in industrial connectivity solutions.
Frequently Asked Questions
Where can I buy Phoenix Contact 2315191?
You can click on the BUY or RFQ button to purchase 2315191 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2315191?
You can download the 2315191 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2315191?
Phoenix Contact
