Phoenix Contact 2320102 DC Power Converter
The QUINT-PS/24DC/24DC/20 is a primary-switched DC/DC converter designed for DIN rail mounting, featuring SFB technology for selective fuse breaking. It offers 24 V DC output at 20 A, supporting reliable load starting with a static power boost up to 125%, and ensures system availability with preventive monitoring. The converter provides electrical isolation for independent supply systems, regenerates voltage at cable ends, and withstands ambient temperatures from -25°C to 70°C with derating. Compact, reliable, and ideal for industrial automation and power supply applications.
Phoenix Contact 2320102 DC Power Converter Specifications:
- Dimensions: Width 82 mm, Height 130 mm, Depth 125 mm
- Ambient temperature: -25°C to 70°C (derating above 60°C)
- Input voltage: 18 VDC to 32 VDC, Nominal 24 VDC, Current: 28 A
- Output voltage: 24 V DC ± 41%, Range: 18 VDC to 29.5 VDC, Current: 20 A
- Efficiency: > 93%, Max. power dissipation: 2.2 W in no-load condition
- Protection class: IP20, Surge protection: Varistor, Insulation voltage: 1.5 kV (type test)
- Connections: Screw terminals for input/output, AWG 8-6 for input, AWG 12-10 for output
- Compliance: EN 61000-6-2, UL 508, cUL Recognized, EN 60950-1

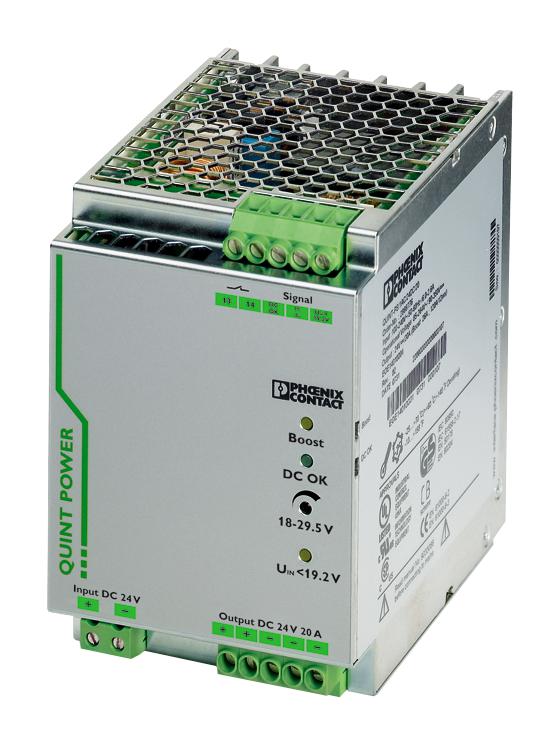

Buy the Buy Phoenix Contact DC/DC Converter Part Number 2320102 Online
Secure your industrial power needs by purchasing the Phoenix Contact QUINT-PS/24DC/24DC/20 online. This highly efficient DC/DC converter provides 24 V at 20 A, ensuring reliable operation in automation systems. It features overload protection, preventive system monitoring, and electrical isolation, making it suitable for demanding environments. Compact and robust with IP20 protection, this converter supports long cable runs and independent power systems. Order now for quick delivery and dependable power conversion in your industrial setup.
Buy Phoenix Contact QUINT-PS/24DC/24DC/20 now and experience unmatched reliability and system protection in industrial power applications.
Frequently Asked Questions
Where can I buy Phoenix Contact 2320102?
You can click on the BUY or RFQ button to purchase 2320102 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2320102?
You can download the 2320102 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2320102?
Phoenix Contact
