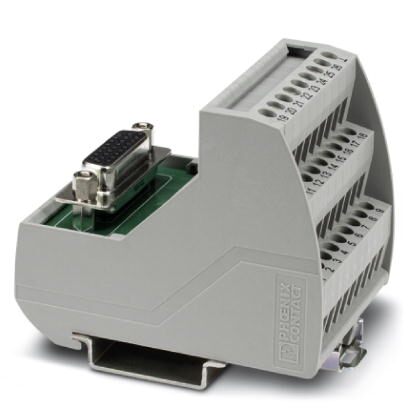

Phoenix Contact 2322414 Interface Module
The PHOENIX CONTACT VIP-3/SC/HD26SUB/F interface module provides a reliable connection point for field devices and controller systems. Designed for mounting on NS 35 rails, this VARIOFACE module incorporates a high-density D-SUB miniature socket strip, enabling efficient and organized connections. The module utilizes a screw connection mechanism, ensuring secure and robust field-level connections. It is suitable for a wide range of industrial applications requiring reliable data transmission and control signal interfacing, particularly in automation and control systems where precise and dependable connections are critical. The module supports a broad range of conductor sizes and is designed to operate within a wide temperature range, ensuring consistent performance in demanding environments.
Phoenix Contact 2322414 Interface Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 140.0 g
- Custom tariff number: 85369010
- Country of origin: United States
- Width: 52.3 mm
- Height: 69 mm
- Depth: 62 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Max. perm. operating voltage: 125 V AC/DC
- Max. perm. current (per branch): 1 A
- Number of positions: 26
- Status display: No
- Mounting position: any
- Standards/regulations: EN 50178
- Connection name (Field level): Field level
- Connection in acc. with standard (Field level): IEC / EN
- Connection method (Field level): Screw connection
- Stripping length (Field level): 8 mm
- Screw thread (Field level): M3
- Conductor cross section solid (Field level): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (Field level): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (Field level): 24 ... 12
- Connection name (Controller level): Controller level
- Connection method (Controller level): High-density D-SUB socket strip
- Number of connections (Controller level): 1
- Connection in acc. with standard (Controller level): CUL
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27250313
- eCl@ss 5.1: 27250313
- eCl@ss 6.0: 27242608
- eCl@ss 7.0: 27141152
- eCl@ss 8.0: 27141152
- ETIM 2.0: EC001434
- ETIM 3.0: EC001604
- ETIM 4.0: EC001604
- ETIM 5.0: EC002780
- UNSPSC 6.01: 30211824
- UNSPSC 7.0901: 39121421
- UNSPSC 11: 39121421
- UNSPSC 12.01: 39121421
- UNSPSC 13.2: 39121421
- cUL Recognized mm²/AWG/kcmil: 30-12
- cUL Recognized Nominal current IN: 1 A
- cUL Recognized Nominal voltage UN: 125 V
- UL Recognized mm²/AWG/kcmil: 30-12
- UL Recognized Nominal current IN: 1 A
- UL Recognized Nominal voltage UN: 125 V
