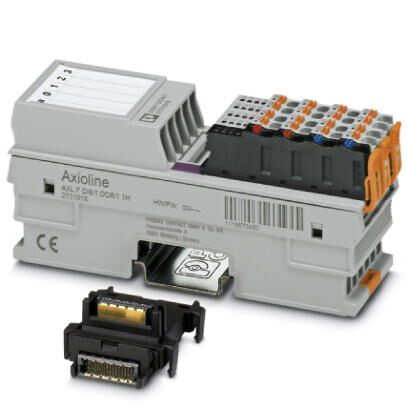

Phoenix Contact 2701916 Digital I/O Module
The Axioline F Digital I/O Module features 8 digital inputs and 8 digital outputs, both operating at 24 V DC. It uses a 1-wire connection method for communication. The outputs can handle up to 500 mA each. The module offers a transmission speed of 100 Mbps on the local bus and is rated IP20 for protection. It includes a bus base module and Axioline F connectors, suitable for industrial automation applications. With adjustable filter times and protection features, it ensures noise immunity and reliable signal acquisition and output in control systems.
Phoenix Contact 2701916 Digital I/O Module Specifications:
- Digital inputs: 8, 24 V DC, EN 61131-2 type 1 and type 3 compatible
- Digital outputs: 8, 24 V DC, 500 mA, protected against short circuit and overload
- Connection method: Push-in connector via Axioline F system
- Transmission speed: 100 Mbps on local bus
- Protection degree: IP20
- Dimensions: Height 126.1 mm, Depth 54 mm
- Mounting: DIN rail with no temperature derating
- Ambient conditions: 70 kPa to 106 kPa, up to 3000 m altitude
- Weight: 133 g
- Environmental: Compliant with REACH, China RoHS, Environmentally friendly use period 50 years
- Approvals: UL Listed, cUL Listed, EAC, BV, BSH, RINA, DNV GL
- Connection: Push-in connection, bus base module interface
- Protection features: Overcurrent and short circuit protection on outputs
Buy the Buy Phoenix Contact Axioline F Digital I/O Module Part Number 2701916 Online
Purchase the Phoenix Contact Axioline F Digital I/O Module 2701916 online today to enhance your automation setup. This robust module features 8 digital inputs and outputs, operates at 24 V DC, and supports fast data transmission at 100 Mbps on a protected IP20 housing. Its push-in connectors simplify installation, and the adjustable filter times improve noise immunity. Suitable for industrial environments, this product offers reliable signal acquisition and output with overload and short circuit protection, ensuring seamless control system operation and long-term durability.
Get Phoenix Contact Axioline F Digital I/O Module 2701916 today—designed for reliable industrial automation with high-speed digital signals and protection features.
