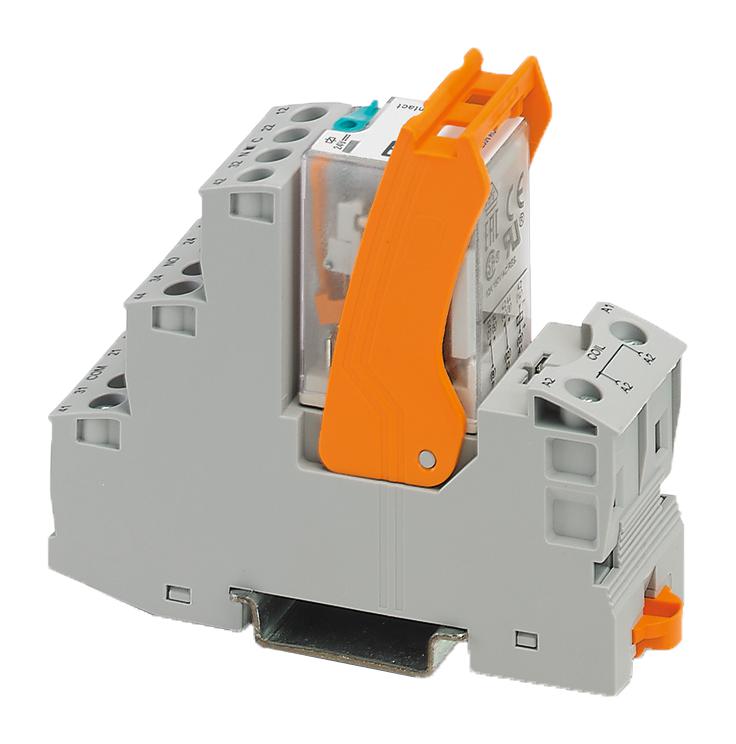

Phoenix Contact 2903326 industrial relay module
This pre-assembled relay module features a screw connection, relay base, power contact relay, and retaining bracket, designed for industrial automation. It includes two changeover contacts, 24 V DC input voltage, and has a compact size of 27mm width, 89mm height, and 75mm depth. The relay offers a response time of 13 ms, a release time of 14 ms, and a maximum switching voltage of 250 V AC/DC. Its robust design ensures reliable operation in industrial environments, with a mechanical lifespan of approximately 20 million cycles and compliance to industry standards including DIN EN 50178.
Phoenix Contact 2903326 industrial relay module Specifications:
- Dimensions: Width 27mm, Height 89mm, Depth 75mm
- Input Voltage: 24 V DC
- Input Current: Typical 42 mA
- Response Time: 13 ms
- Release Time: 14 ms
- Contact Type: 2PDT, changeover contacts
- Contact Material: AgNi
- Maximum Switching Voltage: 250 V AC/DC
- Switching Capacity: up to 2500 VA at 250 V AC
- Mechanical Service Life: Approximately 20 million cycles
- Degree of Protection: 1P20 (Relay base)
- Standards: DIN EN 50178, UL v2
- Insulation Voltage: 250 VAC
- Overvoltage Category: Overvoltage category II
- Operating Temperature: -40°C to 60°C
- Storage Temperature: -40°C to 85°C
- Mounting Position: Any
- Connection Method: Screw connection, stripping length 8mm, torque 0.5-0.6 Nm
Buy the Buy Phoenix Contact Relay Module RIF-2-RSC-LDP-24DC/2X21 Online
Enhance your automation setup by ordering the Phoenix Contact relay module online. It features a robust 24 V DC coil, two changeover contacts, and a compact design measuring 27mm wide. Suitable for demanding industrial environments, this relay offers rapid response times of 13 ms, a high switching voltage of 250 V AC/DC, and a long mechanical lifespan of approximately 20 million cycles. Purchase now to benefit from reliable, efficient, and easy-to-install switching solutions for industrial applications.
Order your Phoenix Contact RIF-2-RSC-LDP-24DC/2X21 relay module today and ensure reliable switching performance in your automation system with durable industrial design.
