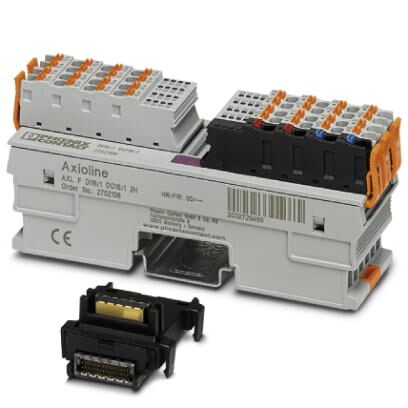

Phoenix Contact 2702106 Digital I/O Module
The Axioline F digital I/O module offers 16 digital inputs and 16 digital outputs, both operating at 24 V DC. It uses 1-wire connection technology for sensor and actuator integration. The outputs support up to 500 mA, with a local bus transmission speed of 100 Mbps and an IP20 degree of protection. Designed for modular automation systems, it includes the bus base module and connectors, and features adjustable filter times for noise immunity, making it suitable for industrial automation applications.
Phoenix Contact 2702106 Digital I/O Module Specifications:
- Digital inputs: 16, 24 V DC
- Digital outputs: 16, 24 V DC, 500 mA
- Connection technology: 1-wire for inputs and outputs
- Local bus transmission speed: 100 Mbps
- Degree of protection: IP20
- Dimensions: Height 129.9 mm, depth varies with DIN rail, typical 35 mm width
- Operating environment: 70 kPa to 106 kPa, up to 3000 m altitude
- Connection method: Push-in connection via Axioline F connector
- Standards: UL Listed, cUL Listed, cULus Listed
- Environmental compliance: China RoHS
Buy the Phoenix Contact Series Axioline F Digital I/O Module: 2702106
Purchase the Phoenix Contact Series Axioline F Digital I/O Module 2702106 online today. This module provides 16 digital inputs and outputs operating at 24 V DC, ideal for industrial automation. It features adjustable filter times for noise immunity, a 100 Mbps local bus for quick communication, and is protected by IP20 standards. Easy to integrate with push-in connection technology, this module ensures robust and reliable digital signal acquisition and control for your automation projects, delivering high performance and installation flexibility.
Order your Phoenix Contact Series Axioline F Digital I/O Module 2702106 today and enhance your automation system with reliable, high-speed digital signal management.
Frequently Asked Questions
Where can I buy Phoenix Contact 2702106?
You can click on the BUY or RFQ button to purchase 2702106 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 2702106?
You can download the 2702106 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 2702106?
Phoenix Contact
