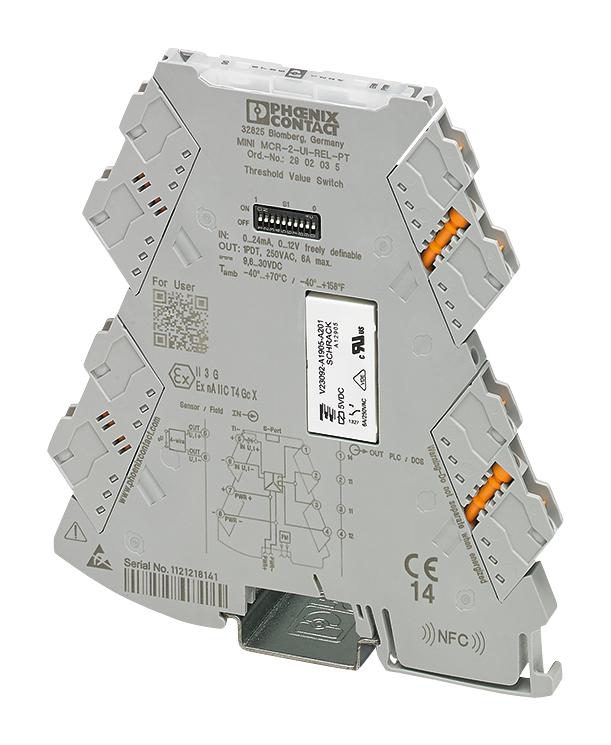

Phoenix Contact 2902035 Limit Value Switch
The MINI MCR-2-UI-REL-PT is a configurable limit value switch designed for precise analog and relay switching applications in industrial automation. It supports input signals from 0 mA to 24 mA and 0 V to 12 V, with configurable response delay and hysteresis via software or DIP switches. Equipped with PDT relay output capable of switching loads up to 250 V AC/DC at 6 A, it features push-in connection technology, NFC communication, fault monitoring, and can be programmed easily. Its robust PBT housing ensures reliable operation in harsh environments, with ambient temperature range of -40°C to 70°C.
Phoenix Contact 2902035 Limit Value Switch Specifications:
- Dimensions: Width 6.2mm, Height 110.5mm, Depth 120.5mm
- Input signals: 0 mA... 20 mA (programmable), 0 V...12 V (DIP switch)
- Relay contact type: 1 PDT, Max. switching voltage: 250 VAC, Max. current: 6A
- Supply voltage: 24V DC, Range: 9.6V DC...30V DC, Typical current: 40mA (12V), 20mA (24V), Power consumption: <0.5W
- Ambient temperature: -40°C to 70°C, Storage/transport: -40°C to 85°C
- Housing: PBT, color: gray, Mounting: any position on DIN rail
- Internal hysteresis and response delay: freely configurable via software, Response delay: Os...10s
- Ingress protection: conformance with IEC 61010-1 standards, Reinforced insulation between input and output
- Input resistance (voltage): >120kΩ, Input resistance (current): approx. 50Ω (+0.7V for test diode)
Buy the Phoenix Contact Series MINI MCR-2-UI-REL-PT: 2902035
Order the Phoenix Contact MINI MCR-2-UI-REL-PT limit value switch online today for reliable, configurable analog and relay switching solutions. Ideal for industrial automation, it supports signals from 0 to 24 mA and 0 to 12 V, with easy programming through software or DIP switches. Equipped with PDT relay contacts capable of switching loads up to 250 V AC/DC at 6 A, and features NFC communication, fault monitoring, push-in connectors, and a sturdy PBT housing. Ensure seamless integration into your automation system with this versatile, high-performance device, perfect for harsh environments and precise control tasks.
Get Phoenix Contact MINI MCR-2-UI-REL-PT today—built for precision and long-lasting durability in industrial automation.
